| Additional Information | : | Impedance Protected, Permanent Split Capacitor Motor |
| Amperage Rating | : | 1.55 A |
| Connection Size | : | 3/4 to 1-1/2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 7-1/4 in L x 5-1/2 in W x 6-1/2 in H |
| Flow Rate | : | 29 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/8 hp |
| Material | : | Iron |
| Maximum Head | : | 23 ft |
| Maximum Pressure | : | 150 psi |
| Model | : | 0014-IFC |
| Motor Speed Rating | : | 3250 rpm |
| Phase | : | 1 ph |
| Series | : | 00 Series |
| Temperature Rating | : | 40 to 230 deg F |
| Voltage Rating | : | 115 VAC |

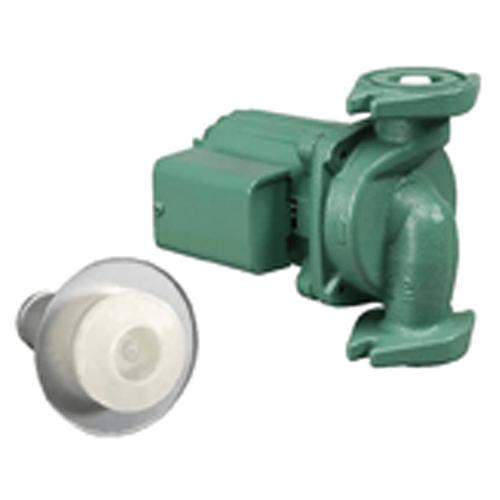

The 0014-IFC includes an integral flow check, saving installation costs while improving system performance. The removable, spring loaded IFC replaces a separate in-line flow check and prevents gravity flow when the circulator is not operating. Available in cast iron or stainless steel construction.
Taco Comfort Solutions® Cartridge Circulator With Integral Flow Check, 00 Series, Model: 0014-IFC, 29 gpm Flow Rate, 23 ft Maximum Head, 115 VAC, 1.55 A, 60 Hz, 150 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/8 hp, 3/4 to 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 40 to 230 deg F, Iron, 7-1/4 in L x 5-1/2 in W x 6-1/2 in H, Additional Information: Impedance Protected, Permanent Split Capacitor Motor
- Standard high capacity output
- Compact design
- Quiet, efficient operation
- Direct drive low power consumption
- Unique replaceable cartridge design
- Field serviceable
- Self-lubricating
- No mechanical seal
- Unmatched reliability - maintenance-free
- Prevents gravity flow/reverse flow
- Eliminates separate in-line flow check
- Reduces installed cost
- Improves system performance
