| Actuator Type | : | On-Off |
| Configuration | : | Normally Open, Normally Closed |
| Connection Type | : | Sweat |
| Flow Coefficient (Cv) | : | 7.5 Cv |
| Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Number of Ways/Position | : | 2-Ways, 2-Position |
| Power Consumption | : | 7.5 VA |
| Power Rating | : | 6.5 W |
| Pressure Rating | : | 300 lbf/sq-in |
| Seat Material | : | Brass |
| Series | : | VT Series |
| Service Type | : | Hot or Chilled Water, 50% Glycol |
| Stem Material | : | Brass |
| Temperature Rating | : | 104 deg F Ambient, 32 to 200 deg F Fluid |
| Voltage Rating | : | 24 VAC |

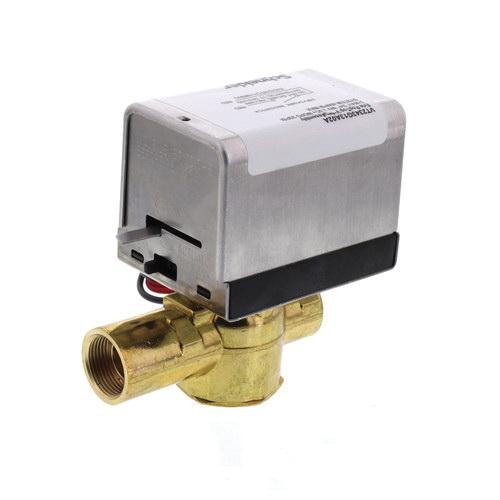

TAC PopTop Zone Valve Assembly, VT Series, 3/4 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 2-Position, 300 lbf/sq-in, 7.5 Cv Flow Coefficient (Cv), Brass Stem, Brass Seat, Brass, On-Off Actuator, 7.5 VA Power Consumption, Hot or Chilled Water, 50% Glycol Service, Normally Open, Normally Closed, 24 VAC, 6.5 W, 104 deg F Ambient, 32 to 200 deg F Fluid
- Valve bodies and actuators provide easy installation for a variety of heating and cooling applications
- Valves actuator can be installed after valve body has been installed onto fan coil, baseboards or air handler
- Direct replacement for all existing two position PopTop applications
- Hysteresis synchronous motor for long life
- Spring return operation provides a fail-safe
- Actuator mounts directly onto valve body without need for linkages or calibration
- Manual override lever
- Actuator can be replaced without any tools or removal of valve from system
- Quicker installation time and easier maintenance
- Factory assembled valve and actuator combinations
- The valves can be mounted in horizontal or vertical piping
- Terminal block with end switch electrical connection
- Spring return normally close action
- Buna-N paddle
- 24 to 240 VAC at 101 mA minimum to 5 a maximum and 9 to 30 VDC at 100 mA maximum end switch
- Stainless steel base plate, aluminum cover actuator
