| Connection Type | : | Male Flared |
| Finish | : | Lacquered |
| Nominal Size | : | 1/4 in |
| Pressure Rating | : | 500 psi |
| Series | : | BPV Series |
| Temperature Rating | : | 250 deg F |

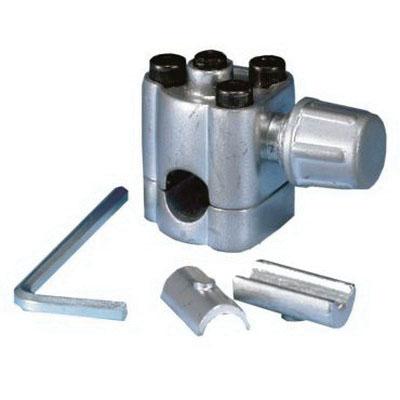

Supco® bullet piercing valve utilizes the same type of gasket found under the head plate of most air conditioning compressors. When installed, the gasket actually compressors the copper tubing 0.020 in creating a permanent, leak-proof seal, that will withstand any pressure and temperature for the life of the unit. BPV Series bullet piercing valves the only valve with a permanent type, patented gasket application.
Supco® Bullet Piercing Valve, BPV Series, 1/4 in Nominal, Male Flared Connection, 500 psi, Finish: Lacquered, 250 deg F
- Patented valve gasket application provides 50 times more sealing area than competitive O-ring types
- A sealing force of over 180 in-lb, torque tested with 500 lb, pressure tested at 250 deg F
- Precision piercing needle is engineered for concentricity and hardness to insure perfect seating every time
- Non-positional-mounting no adapter valve required
- Requires only a 2 in clearance area for installation and operation
- Hex key wrench included-no additional tools required
- Corrosion-resistant-plated and lacquered finish
- 5/16 in OD tubing
