| Additional Information | : | 104 deg F Temperature Rating, 1 ph Phase, 5 hp Motor Power Rating |
| Amperage Rating | : | 30 A |
| Contact Form | : | NC |
| Overall Depth | : | 2-1/4 in |
| Overall Height | : | 1-1/2 in |
| Overall Width | : | 1-3/4 in |
| Terminal Type | : | Screw or Push-On |
| Voltage Rating | : | 115-277 V |

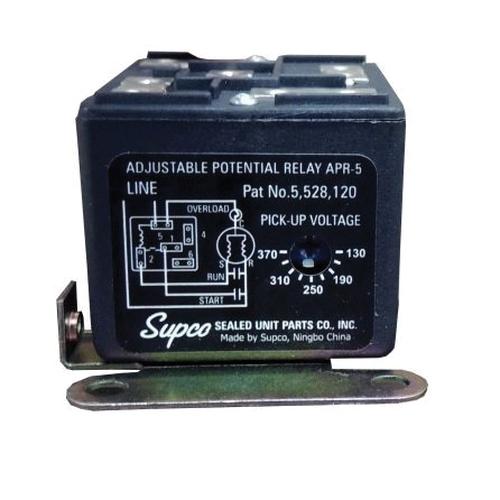

Supco® Adjustable Potential Relay, 115-277 V, 30 A, NC, Screw or Push-On Terminal, 1-3/4 in Overall Width, 2-1/4 in Overall Depth, 1-1/2 in Overall Height, Additional Information: 104 deg F Temperature Rating, 1 pHase, 5 hp Motor Power Rating
- Adjustable electronic potential relay (EPR) technology
- Instant restart
- Motor power rating up to 5 hp
- Non-positional
- Normally closed 30 Amp contacts
- Safety time out 1.0 - 1.5 seconds
- Set pick-up voltage
- Start winding protection if motor does not start
- UL® recognized
- Voltage sensitive relay
