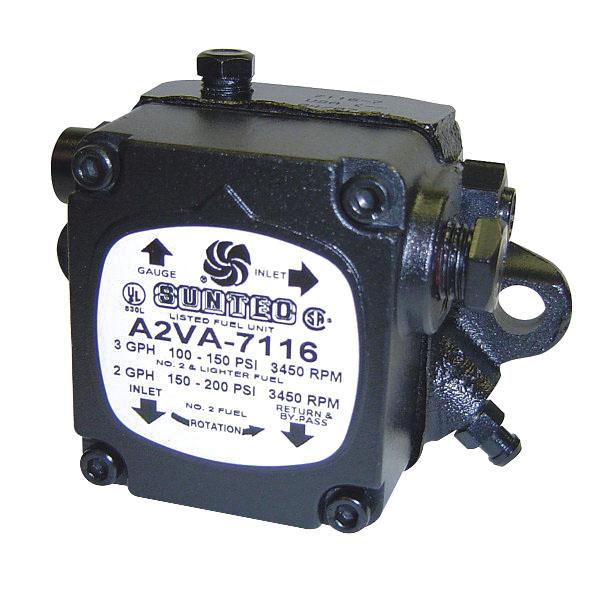

Suntec SUNA2VA7116

Suntec A2VA-7116 Standard Fuel Oil Pump, 1/8 in Outlet Connection, 3 gph

Manufacturer: Suntec Industries
Part #: SUNA2VA7116
Customer Part #:
Login for Availability
Login for Price
Flow Rate      :      3 gph
Fluid Type      :      Kerosene, Oil
Inlet Connection Size      :      1/4 in
Outlet Connection Size      :      1/8 in
Pressure Rating      :      100 to 200 psi
Speed Rating      :      3450 rpm
Temperature Rating      :      50 to 115 deg F

Suntec Standard Fuel Oil Pump, 3 gph Flow Rate, 3450 rpm, 100 to 200 psi, 1/4 in Inlet Connection, 1/8 in Outlet Connection, Kerosene, Oil Fluid, 50 to 115 deg F

  • 1-pipe installations to 6 Inch Hg vacuum
  • 2 pipe installations to 12 Inch Hg vacuum
  • Lift or gravity feed applications with 10 psi maximum inlet/return pressure
  • Suitable for #2, #1 fuel oil or kerosene
  • Mounting in any position
  • Factory set at 100 psi
  • Adjustable range 100 - 150 psi at 3450 rpm, 100 - 135 psi at 1725 rpm, models available to 200 and 300 psi
  • Right nozzle location
  • 1 Number of Stages
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Suntec_A2VA_7116_Catalog.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Suntec_A2VA_7116_Specification_Sheet.pdf
