| Flow Rate | : | 7 gph |
| Fluid Type | : | Kerosene, Oil |
| Inlet Connection Size | : | 1/4 in |
| Outlet Connection Size | : | 1/8 in |
| Pressure Rating | : | 100 psi |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 50 to 115 deg F |

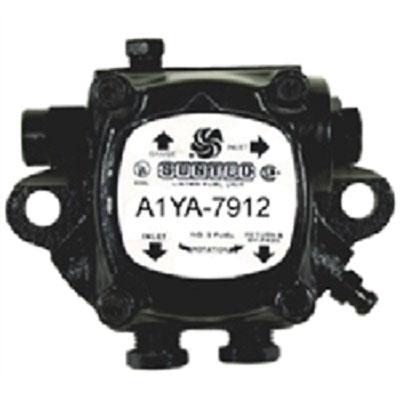

Suntec Fuel Oil Pump, 7 gph Flow Rate, 1725 rpm, 100 psi, 1/4 in Inlet Connection, 1/8 in Outlet Connection, Kerosene, Oil Fluid, 50 to 115 deg F
- 1-pipe installations to 6 Inch Hg vacuum
- 2 pipe installations to 12 Inch Hg vacuum
- Lift or gravity feed applications with 10 psi maximum inlet/return pressure
- Suitable for #2, #1 fuel oil or kerosene
- Mounting in any position
- Factory set at 100 psi
- Adjustable range 100 - 150 psi at 3450 rpm, 100 - 135 psi at 1725 rpm, models available to 200 and 300 psi
- Right nozzle location
- 1 Number of Stages
- CW/RH Rotation
- 5/16 Inch Shaft Size
