| Body Material | : | Brass |
| End Type | : | Solder |
| Nominal Size | : | 3/8 in |
| Pressure Rating | : | 0 to 75 psi |
| Series | : | ADR Series |
The Sporlan® type ADR discharge bypass regulating valves have a brass body. The smaller capacity direct acting valves are available with SAE or ODF connections. The larger capacity pilot operated valves have extended copper connections. The direct acting valves are available with non-adjustable or adjustable settings. The pilot operated valves are available with adjustable settings. The primary function of these valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.

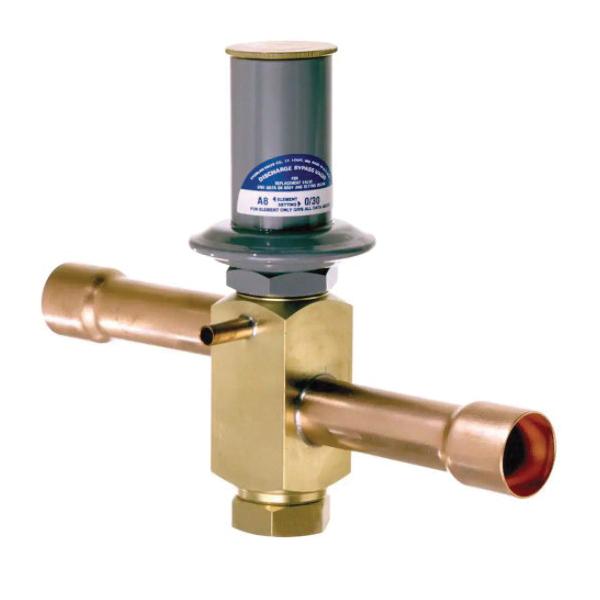

Sporlan® Discharge Bypass Valve, ADR Series, 3/8 in Nominal, Solder End, 0 to 75 psi, Brass Body
- Range of adjustable settings
- The SHGB pilot operated valves have a solenoid stop feature
