| Additional Information | : | Tetraseal, 40 Mesh Insertable Strainer, 1.218 in Port |
| Body Material | : | Brass |
| End Type | : | Solder |
| Height | : | 28.42 in |
| Nominal Size | : | 1-1/8 in |
| Pressure Rating | : | 30 to 100 psi |
| Series | : | ORIT Series |
| Temperature Rating | : | -40 to 155 deg F |

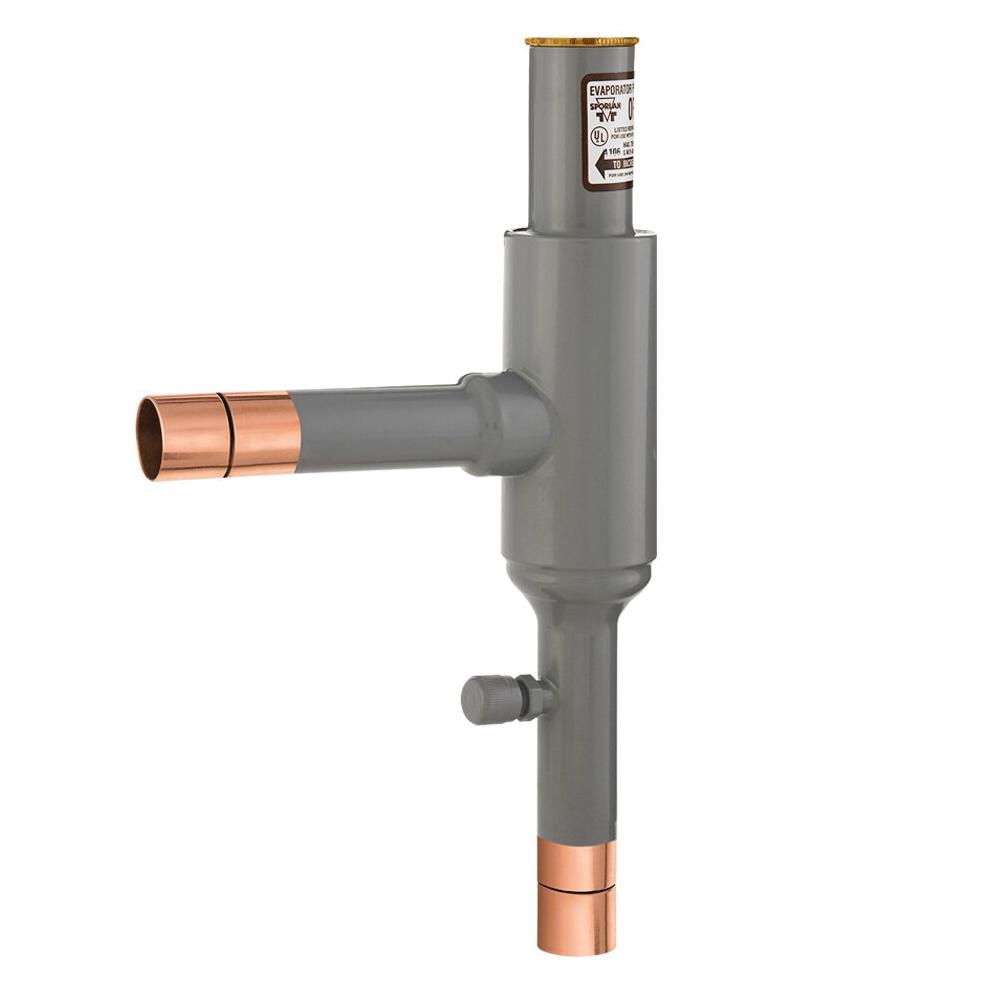

The Parker Sporlan type (S) ORIT evaporator regulating valves have a brass body and extended copper connections. They are available with a range of adjustable settings and pressure tap. The primary function of these valves, referred to as EPR valves, is to prevent the evaporator pressure from falling below a predetermined value or setting. Each valve is factory tested to ensure positive leak-free performance.
Sporlan® Pressure Regulating Valve With Pressure Tap, ORIT Series, 1-1/8 in Nominal, Solder End, 30 to 100 psi, -40 to 155 deg F, Brass Body, 28.42 in Height, Additional Information: Tetraseal, 40 Mesh Insertable Strainer, 1.218 in Port
- ORIT has high-side pilot for improved temperature control and low pressure drop
- ORIT is normally open to allow system evacuation without a manual operator
- Range of adjustable settings up to 150 psi
- Optional solenoid feature to close valve during defrost
