| Additional Information | : | Manual Lift Stem, High Pressure Rated, 2 Coil Size |
| Body Material | : | Brass |
| End Type | : | ODF Solder |
| Nominal Size | : | 1/2 in |
| Overall Height | : | 3.45 in |
| Overall Length | : | 5 in |
| Port Size | : | 9/32 in |
| Pressure Rating | : | 1015 psi |
| Refrigerant Type | : | R-22, R-134A, R-401A, R-402A, R-404A, R-407C, R-407F, R-410A, R-507 |
| Series | : | E Series |
| Temperature Rating | : | 120 deg F |
The Sporlan type E Series solenoid valves are provided as two basic types of solenoid valves. One of the most common is the normally closed type, in which the valves opens when the coil is energized and closes when the coil is de-energized. The valves are brass forged or brass bar stock. The E Series has extended copper connections. For air conditioning or refrigeration applications it is important to use system capacity, refrigerant, type of fluid, temperature and pressures. It is not recommended to size by line size. Refer to literature or selection program for capacity data.

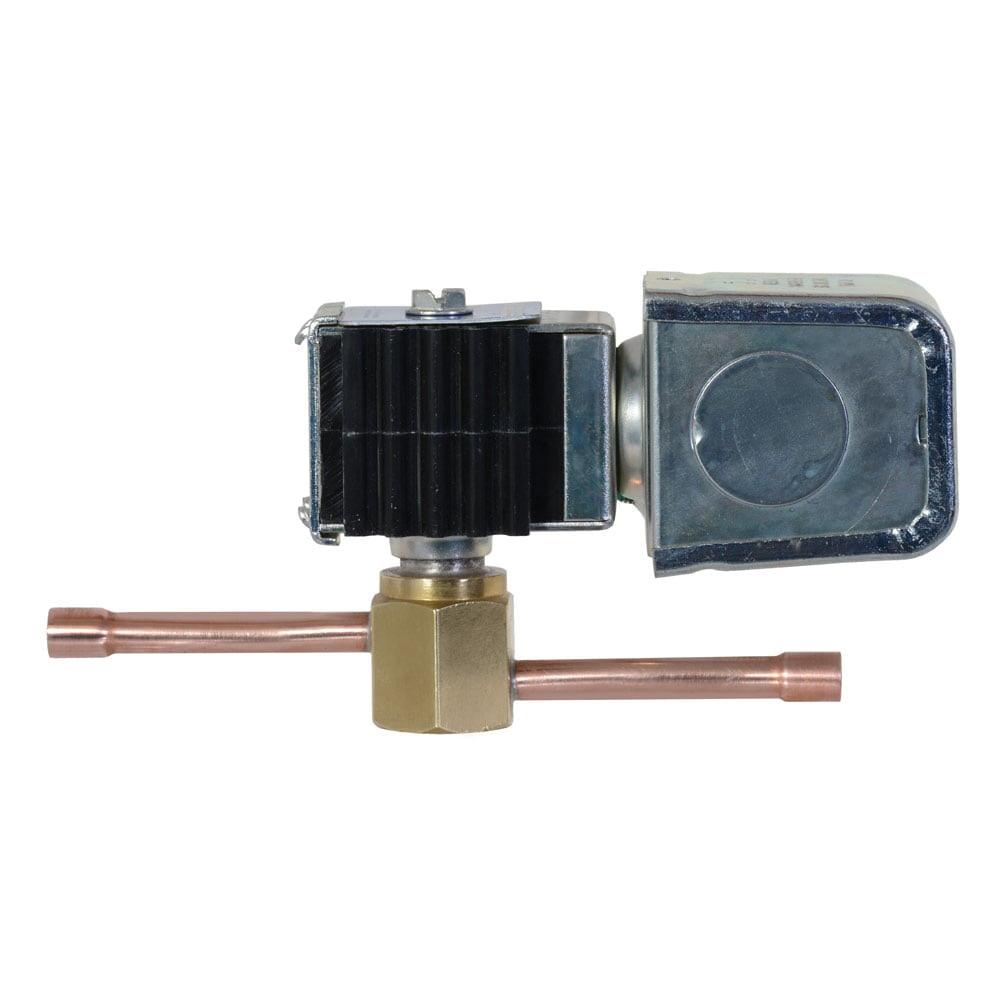

Sporlan® Normally Closed Solenoid Valve, E Series, 1/2 in Nominal, ODF Solder End, R-22, R-134A, R-401A, R-402A, R-404A, R-407C, R-407F, R-410A, R-507 Refrigerant, 1015 psi, 120 deg F, 9/32 in Port, Brass Body, 5 in Overall Length, 3.45 in Overall Height, Additional Information: Manual Lift Stem, High Pressure Rated, 2 Coil Size
- E Series has extended copper connections
- Disassembly for installation is unnecessary
- Synthetic seating material for tight closing
- Synthetic-coated metal gaskets minimize external leaks
