| Body Material | : | Brass |
| Coil Insulation Class | : | Class F |
| Coil Type | : | MKC-1 |
| Configuration | : | NC |
| Connection Type | : | ODF Extended Solder |
| Nominal Size | : | 3/8 in |
| Number of Ports/Ways | : | 2-Way |
| Orifice Size | : | 3/16 in |
| Pressure Rating | : | 500 psi Working, 300 psi AC and 175 psi DC Differential |
| Seal Material | : | Metal |
| Seat Material | : | Synthetic |
| Series | : | ME6S130 Series |
| Stem Material | : | Stainless Steel |
The Sporlan type A, B and E series solenoid valves are provided as 2 basic types of solenoid valves. The most common is the normally-closed type, in which the valve opens when the coil is energized, and closes when the coil is de-energized. The other type is the normally-open valve which opens when the coil is de-energized and closes when the coil is energized. The valves are brass forged or brass bar stock. The E series has extended copper connections. For air conditioning or refrigeration applications it is important to use system capacity, refrigerant, type of fluid, temperature and pressures. It is not recommended to size by line size. Refer to literature or selection program for capacity data. Each valve is factory tested to ensure positive leak-free performance. For over 80 years the Sporlan division of Parker Hannifin has set the industry standard for the development and manufacture of leading edge HVACR components. Our outside technical sales force and application engineering team focuses on refrigeration system applications and troubleshooting for service technicians, distribution channel partners, and original equipment manufacturers.

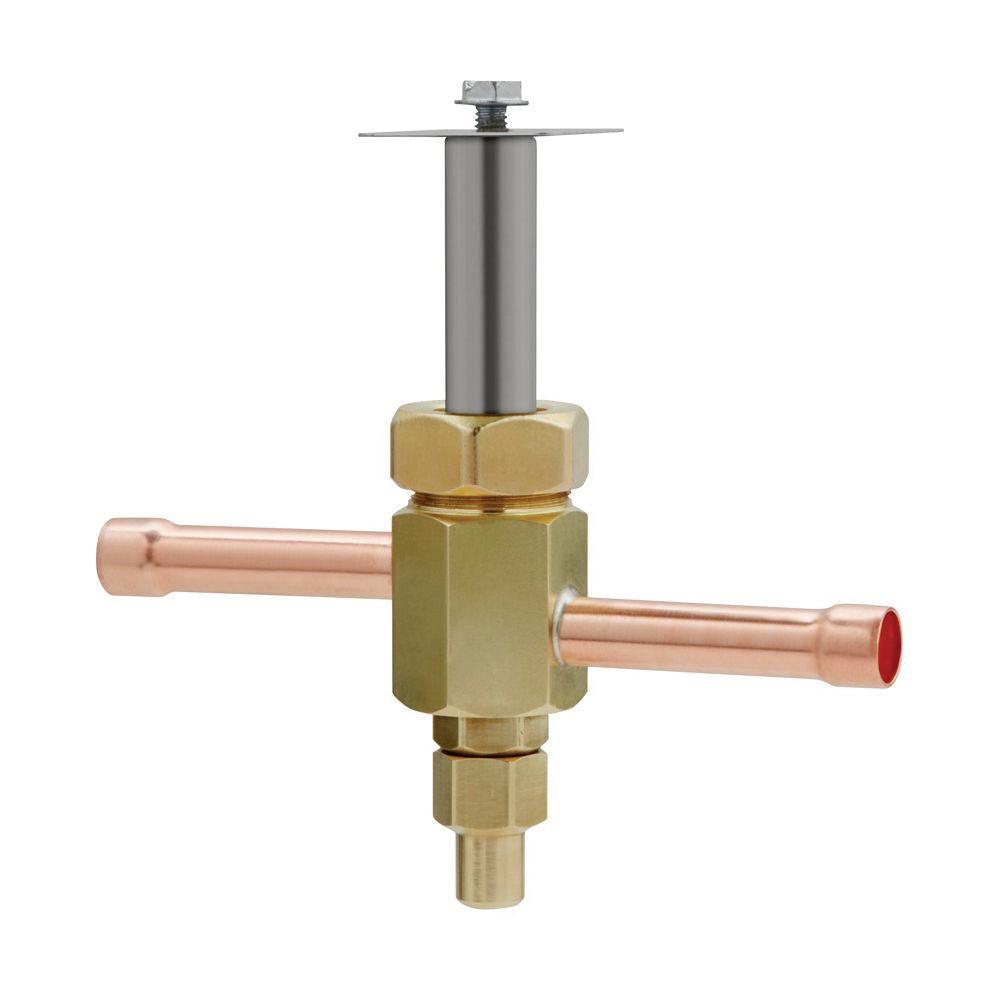

Sporlan® Solenoid Valve, ME6S130 Series, 3/8 in Nominal, ODF Extended Solder Connection, NC, 500 psi Working, 300 psi AC and 175 psi DC Differential, 3/16 in Orifice, Coil Insulation Class: Class F, MKC-1 Coil, Number of Ports/Ways: 2-Way, Brass Body, Synthetic Seat, Stainless Steel Stem, Metal Seal
- Less coil
- Manual lift stem
- Disassembly for installation is unnecessary
- Synthetic seating material for tight closing
- Synthetic-coated metal gaskets minimize external leaks
- Refrigerant fluid type
- 10 W AC, 15 W DC power rating
- 24/120/208 - 240/120 - 208 - 240 VAC at 50/60 Hz voltage rating
