| Depth | : | 3 in |
| Material | : | Brass |
| Series | : | ASC-7-4 Series |
| Size | : | 7/8 in |
The Sporlan refrigerant distributor provides exceptional refrigerant mixing to ensure the evaporator coil circuits are equally fed and performance is maintained. As refrigerant passes through the thermostatic expansion valve, a portion of the liquid flashes, resulting in 2-PH (liquid and vapor) flow at the inlet of the refrigerant distributor nozzle. The nozzle increases the velocity of the 2-PH flow, mixing its liquid and vapor components. In addition, the nozzle is positioned such that flow is focused onto the dispersion cone, equally dividing the mixture into passageways spaced evenly around the cone. The refrigerant then flows through the distributor tubes to each evaporator circuit. Using a sporlan refrigerant distributor will provide exceptional evaporator performance by equally feeding all circuits.

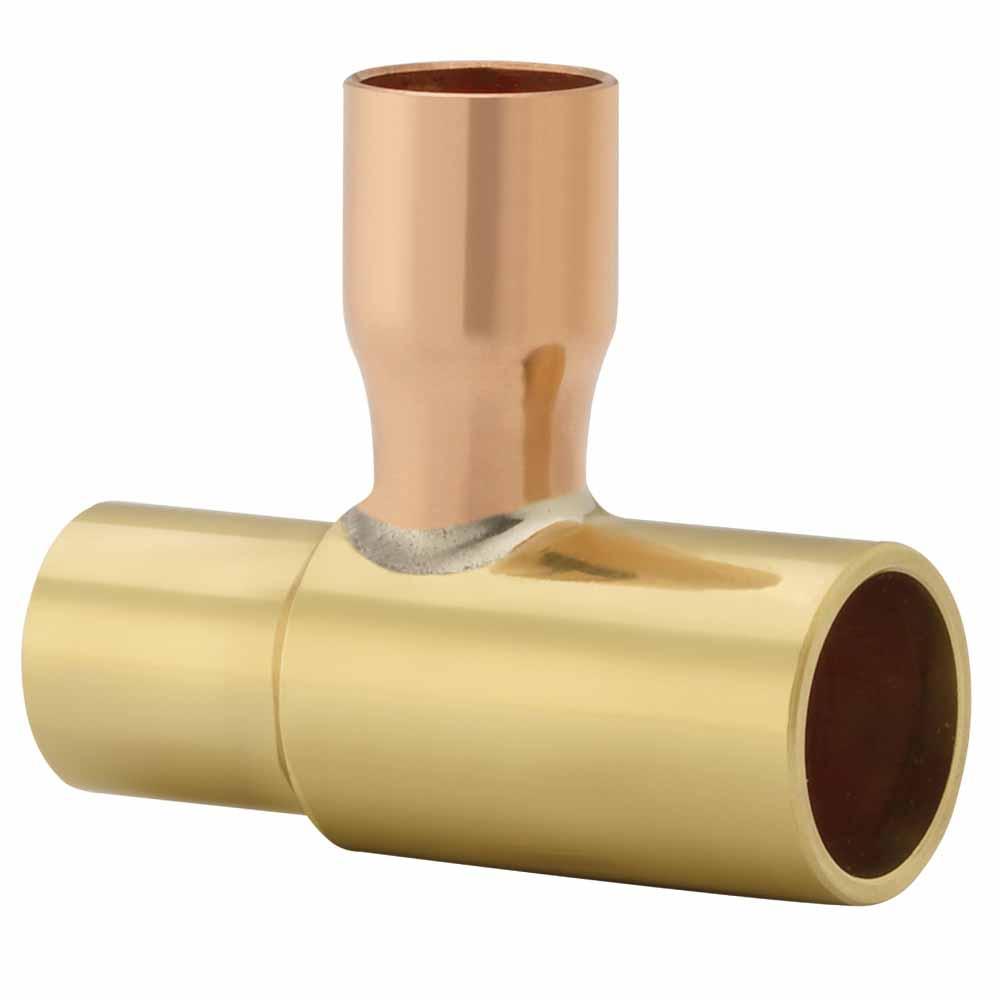

Sporlan® Auxiliary Side Connector, Series: ASC-7-4 Series, 7/8 in, Brass, 3 in D
- Reliable Sporlan machining quality
- Easy to solder, steel models feature trepanned circuits for simplified welding
- Interchangeable nozzle permits custom selection
- Can be installed in any position
- Can be applied to any make multi-circuit evaporator coil
- Allows visual inspection of solder joints
- Permits use of a probe wire or air jet to test for plugged circuits at distributor or evaporator coil
- Orifice less nozzle with ring
- ODM x ODF x ODF connection type
- 700 lb/sq-in pressure rating
- For used in air conditioning, refrigeration food retail, transportation and industrial food storage units
