| Body Material | : | Machined Brass |
| Capillary Length | : | 30 in |
| Charge Type | : | Type GA |
| Connection Type | : | ODF Solder |
| Dimensions | : | 3.66 in H |
| Element Size | : | 45 |
| Equalizer Size | : | 1/4 in |
| Equalizer Type | : | External |
| Model | : | RCZE-4-GA |
| Nominal Capacity | : | 4 ton |
| Nominal Size | : | 1/2 x 1/2 in |
| Pressure Rating | : | 700 psi |
| Refrigerant Type | : | R-410A |
| Seat Material | : | Brass |
| Strainer Type | : | 100 Mesh Removable |
| Temperature Rating | : | 40 deg F Evaporator, 100 deg F Liquid |

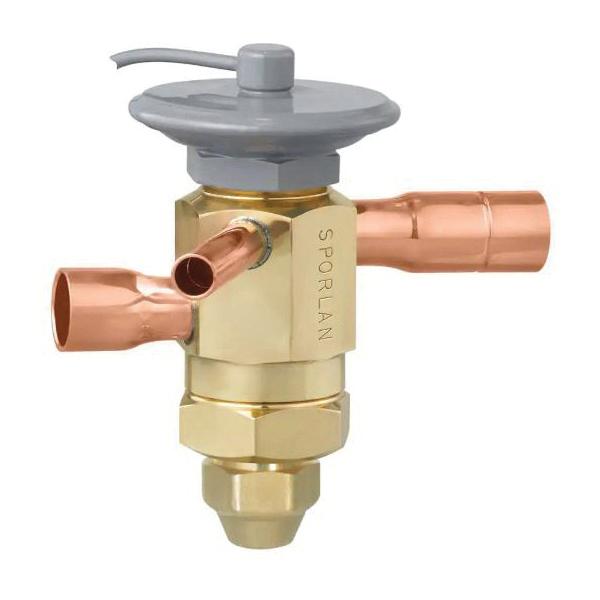

Sporlan® type RC valve is a small brass body, externally adjustable valve with balanced port construction. The RC valves are available for replacement of types CBI and CBBI valves. These valves contain internal check valves to allow reverse flow on heat pump applications. This eliminates the need for an external check valve piped around the TEV for reverse flow. The RC valve can be used on heat pump and air conditioning (cooling only) applications. This allows you to reduce inventory by using the same valve to replace the I, BI and BBI valves. The RC valves can even be used to replace the RI valve (non-RPB versions only).
Sporlan® Thermostatic Expansion Valve, Model: RCZE-4-GA, 1/2 x 1/2 in Nominal, ODF Solder Connection, 4 ton Nominal Capacity, R-410A Refrigerant, External Equalizer, 1/4 in Equalizer, 45 Element, 30 in Capillary Length, Type GA Charge, 700 psi, 100 Mesh Removable Strainer, Machined Brass Body, Brass Seat, 40 deg F Evaporator, 100 deg F Liquid, 3.66 in H
- Optional inlet strainer
- Can be applied in bi-directional applications
- Can operate over widely varying operating conditions
