| Additional Information | : | 83 Thermostatic Element, 1/2 x 3-1/2 in Bulb |
| Capillary Length | : | 5 ft |
| Charge Type | : | ZP |
| End Type | : | ODF Solder |
| Equalizer Type | : | External |
| Housing Material | : | Brass |
| Inlet Size | : | 1/2 in |
| Nominal Capacity | : | 3 ton |
| Outlet Size | : | 7/8 in |
| Overall Height | : | 5.19 in |
| Pressure Rating | : | 450 psi |
| Refrigerant Type | : | R-404A, R-507A |

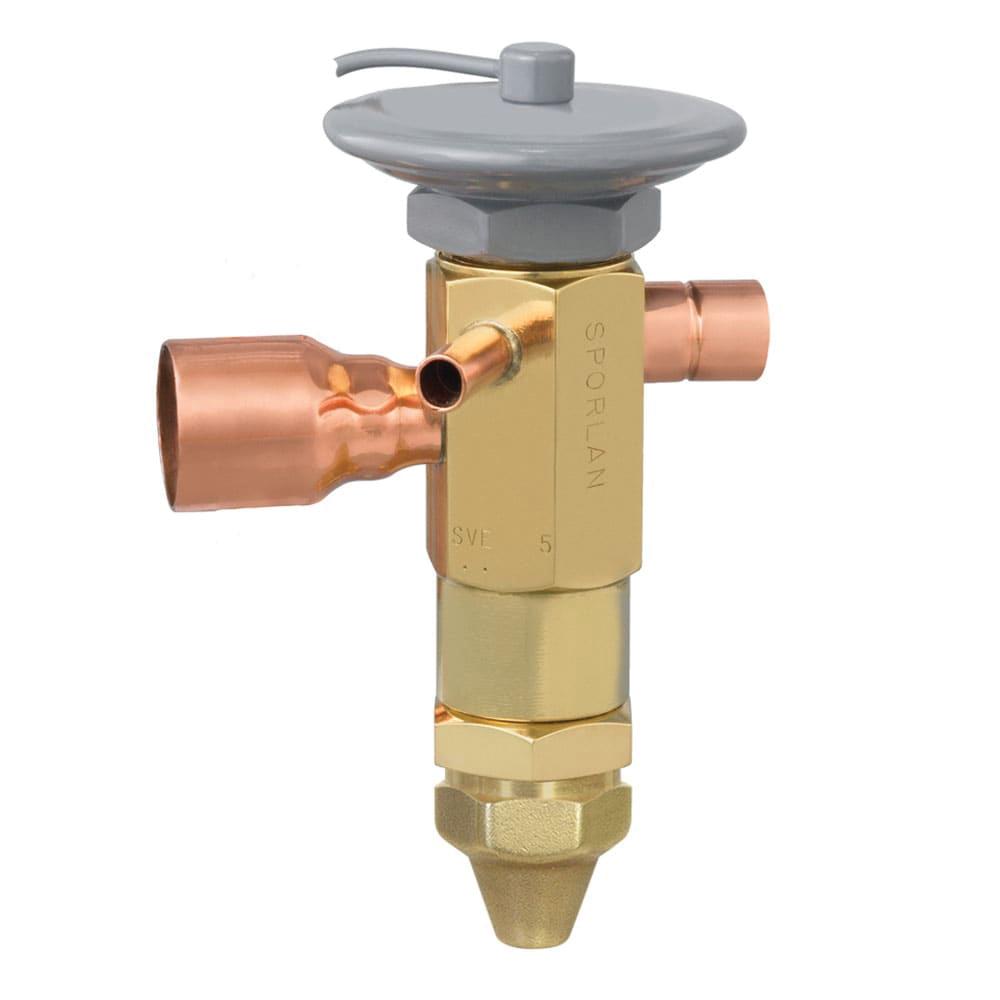

The Sporlan type S thermostatic expansion valves have a brass bar stock body. The S valve has ODF connections. It is available with adjustable superheat, long-lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The R/ER Series valves serve as functional replacements.
Sporlan® Thermostatic Expansion Valve, Inlet Size: 1/2 in, Outlet Size: 7/8 in, ODF Solder End, R-404A, R-507A, 3 ton Capacity, Equalizer Type: External, 5 ft Length Capillary, Charge Type: ZP, 450 psi Pressure, Brass Housing, 5.19 in OAH, 83 Thermostatic Element, 1/2 x 3-1/2 in Bulb
- Permanent inlet strainer
- Thermostatic charges available to match system conditions
