| Body Material | : | Brass |
| Capillary Length | : | 30 in |
| Charge Type | : | Type C |
| Connection Type | : | ODF Solder |
| Dimensions | : | 3.76 in H |
| Element Size | : | 43 |
| Equalizer Size | : | 1/4 in ODF Solder |
| Equalizer Type | : | External |
| Nominal Capacity | : | 0.5 to 1 ton |
| Nominal Size | : | 3/8 x 1/2 in |
| Pressure Rating | : | 450 psi |
| Refrigerant Type | : | R-404A |
| Seat Material | : | Brass |
| Strainer Type | : | 100 Mesh Removable |

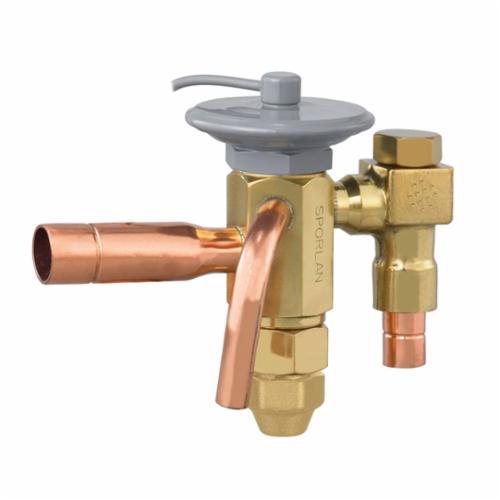

The Sporlan® Type BF-EBF-SBF balance ported thermostatic expansion valves have a brass bar stock body with flare or sweat connections, adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation.
Sporlan® Thermostatic Expansion Valve, 3/8 x 1/2 in Nominal, ODF Solder Connection, 0.5 to 1 ton Nominal Capacity, R-404A Refrigerant, External Equalizer, 1/4 in ODF Solder Equalizer, 43 Element, 30 in Capillary Length, Type C Charge, 450 psi, 100 Mesh Removable Strainer, Brass Body, Brass Seat, 3.76 in H
- Balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation
- Thermostatic charges available to match system conditions
