| Amperage Rating | : | 20 A |
| Conductor Material | : | Soft Drawn Copper |
| Conductor Size | : | 12 AWG |
| Insulation Color | : | Black, White, Green |
| Jacket Color | : | Silver |
| Length | : | 250 ft |
| Number of Conductors | : | 2 with Ground |
| Outside Diameter | : | 0.527 in |
| Solid/Stranded | : | Solid |
| Temperature Rating | : | 90 deg C |
| Voltage Rating | : | 600 V |

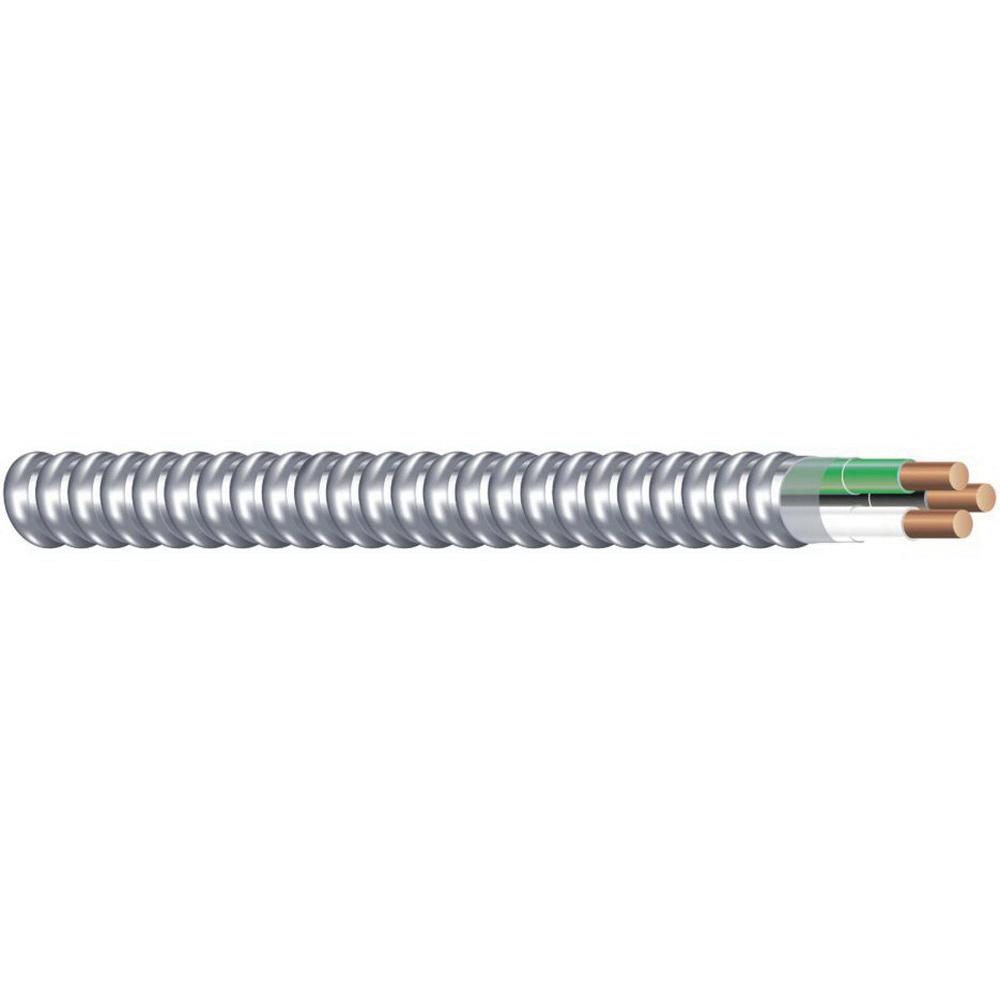

Southwire® Armorlite THHN/THWN Metal Clad Cable, 600 V, 20 A, 2 with Ground -Conductor, 12 AWG Conductor, Soft Drawn Copper Conductor, 0.527 in OD, 250 ft L, Solid, Black, White, Green Insulation, Silver Jacket, 90 deg C
- Fished or embedded in plaster
- Concealed or exposed installations
- Installation in cable tray and approved raceways
- The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly
- Aluminum interlocking armor is applied over the assembly
