| Actuator Type | : | Handle |
| Additional Information | : | 1-1/2 in Spud Coupling, 11-1/2 in Rough-In Dimension, Top Spud Fixture Connection |
| Body Material | : | Brass |
| Collection | : | Regal® |
| Connection Type | : | IPS |
| Dimensions | : | 9-3/4 in L x 9-1/8 in W x 4-3/8 in H |
| End Connection | : | IPS |
| Finish | : | Polished Chrome |
| Flush Rate | : | 1.28 gpf |
| Handle Type | : | Open |
| Media | : | Water |
| Model | : | REGAL 111-1.28 |
| Mounting Type | : | Wall |
| Nominal Size | : | 1 in |
| Operator Type | : | Manual |
| Pressure Rating | : | 15 to 80 psi |

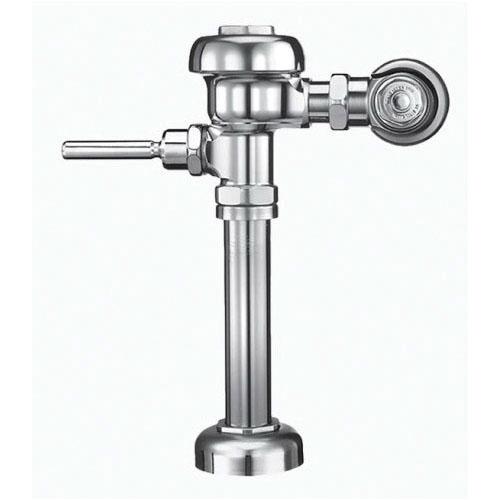

Sloan® Manual Flushometer, Model: REGAL 111-1.28, Regal® Collection, IPS Connection, 1 in Nominal, 15 to 80 psi Pressure, Media: Water, Handle Actuator, IPS End Connection, 1.28 gpf Flush, Open Handle, Brass Body, Manual Operator, Wall Mounting, Polished Chrome, Dimensions: 9-3/4 in L x 9-1/8 in W x 4-3/8 in H, Additional Information: 1-1/2 in Spud Coupling, 11-1/2 in Rough-In Dimension, Top Spud Fixture Connection
- ADA compliant metal oscillating non-hold open handle
- 1 in IPS® screwdriver Bak-Chek® angle stop
- Control stop plug
- Sweat solder adapter with cover tube
- Cast wall flange with setscrew
- Vacuum breaker flush connection
- Non-hold open handle and no external volume adjustment to ensure water conservation
