| Additional Information | : | 1000 lb Strainer Load Rating, 5-1/2 in Dia Strainer |
| Connection Type | : | Hub |
| Dimensions | : | 9-1/2 in Dia x 4-3/8 in L |
| Domestic/Import | : | Domestic |
| Drain Material | : | PVC |
| Finish | : | Nickel Bronze-Coated |
| Grid Size | : | 5-1/2 in |
| Nominal Size | : | 3 x 4 in |
| Series | : | 822 Series |
| Suitable For Use With | : | Loft Remodels and Second Floor Utility/Laundry Room |
Sioux Chief 822 Series adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall have an 18 ga stainless steel deck mounting flange and ABS/PVC body with SCH 40 hub connection. Floor drain shall allow adjustment of 3/4 in above the deck flange. Strainer shall be heel-proof and meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection.

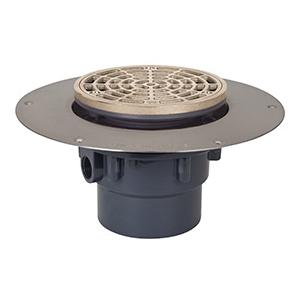

Sioux Chief Halo™ Floor Drain, 822 Series, 3 x 4 in Nominal, Hub Connection, PVC Drain, 5-1/2 in Grid, For Use With: Loft Remodels and Second Floor Utility/Laundry Room, Finish: Nickel Bronze-Coated, 9-1/2 in Dia x 4-3/8 in L, Domestic/Import: Domestic, Additional Information: 1000 lb Strainer Load Rating, 5-1/2 in Dia Strainer
- Outlet welds over 2 in and inside 3 in or over 3 in and inside 4 in
- Head adjusts up to 3/4 in above flush to accommodate most flooring types
- Installs easily in cored concrete floors or corrugated decks
- Great for loft remodels, second floor utility rooms/laundry rooms and more
