| Additional Information | : | CTS Connection Type |
| Height | : | 1-1/2 in |
| Length | : | 1-3/8 in |
| Load Capacity | : | 16 lb |
| Material | : | Polyethylene |
| Series | : | 551-P Series |
| Suitable For Use With | : | Copper, PEX and CPVC Tubes |
| Temperature Rating | : | 160 deg F |
| Tube Size | : | 3/4 in |
| Width | : | 7/16 in |

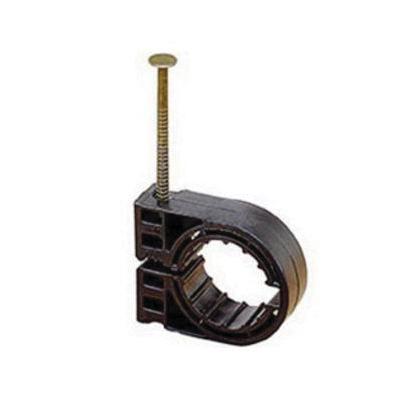

Sioux Chief 551-P Series Padlock full clamp pipe hanger shall be used where necessary to secure 1/2 or 3/4 in CTS supply lines. Clamp shall be 100% corrosion-proof and UV-resistant. Clamp shall be impact-resistant to 0 deg F and be able to withstand continuous temperatures up to 160 deg F. Clamp shall include pre-loaded continuous ring shank nail or drill tip screw depending on model number. Nails and screws shall be zinc-plated to resist rust. Clamp shall be designed to protect tube from damage if nail is over driven and designed so that there is no way for tube to escape.
Sioux Chief Full Clamp Tube Strap, 551-P Series, 3/4 in Tube, 16 lb Load, Polyethylene, 1-3/8 in Length, 7/16 in Width, 1-1/2 in Height, 160 deg F, For Use With: Copper, PEX and CPVC Tubes, Additional Information: CTS Connection Type
- Nail or screw locks tube into hanger so there is no way for tube to escape
- Will not damage tube if nail or screw is over driven
- Allows tube to expand and contract
- Isolates tube from surface to reduce heat loss and noise transfer
- Fits and fastens to the grid iron bracket
- Compatible with copper, PEX and CPVC
