| Material | : | Steel |
| Mounting Location | : | Joist |
| Mounting Type | : | Nail, Screw |
| Overall Height | : | 5-3/8 in |
| Overall Length | : | 3.38 in |
| Overall Width | : | 1-1/2 in |
| Pipe Size | : | 2-3/8 in |
| Weight Capacity | : | 552 lb |
Sioux Chief 533 Series stud shoe supports shall be designed to conform to national plumbing code requirements. Stud shoes shall be used to reinforce studs that have been bored or notched to allow for DWV piping. Stud shoe shall be secured to joist with nails or screws. All nail holes must be used and fasteners (not provided) shall be no less than #10d x 1-1/2 in L. Sioux Chief's 533 Series stud shoe bracket is NOT a total replacement of removed construction materials.

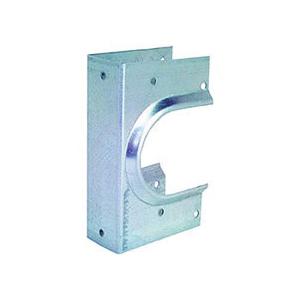

Sioux Chief 1-Stud Shoe Support Bracket, 552 lb Weight, 2-3/8 in Pipe, Steel, Joist Mounting Location, Nail, Screw Mounting, 3.38 in Overall Length, 1-1/2 in Overall Width, 5-3/8 in Overall Height
- Formed rib provides added strength
- Installs over pipe up to 2-3/8 in OD
