| Finish | : | Copper |
| Gauge | : | 24 ga |
| Hole Center-to-Center | : | 2 in, 4 in, 1 in |
| Material | : | Steel |
| Mounting Hole Size | : | 1.13 in |
| Mounting Type | : | Nail, Screw, Stud |
| Overall Height | : | 1-3/4 in |
| Overall Length | : | 20 in |
| Pipe Size | : | 1 in |
| Series | : | 521 Series |
| Weight Capacity | : | 25 lb |

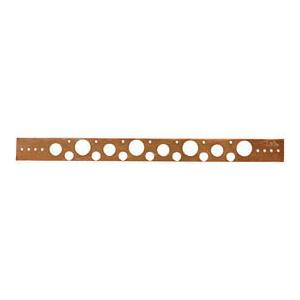

Sioux Chief's copper-plated stub out bracket shall be used where necessary to support 1/2, 3/4 or 1 in nominal copper stub outs for water supply lines. Holes for positioning copper tube shall be located on 2 or 4 in center lines depending on model number. Bracket shall be manufactured with copper-plated steel that includes a protective water based clear coat finish to minimize surface rust when arriving at jobsite. Depending on model number, bracket may feature extruded holes, providing a wider soldering surface. Bracket may also feature rolled edges to provide additional strength. Bracket shall be IAPMO listed.
Sioux Chief Flat Stub-Out Bracket, 521 Series, 25 lb Weight, 1 in Pipe, Steel, Finish: Copper, Nail, Screw, Stud Mounting, 1.13 in Mounting Hole, 2 in, 4 in, 1 in Hole Center-to-Center, 24 ga Gauge, 20 in Overall Length, 1-3/4 in Overall Height
- Extruded model provides 4X the soldering surface for extra strength
- Heat the tube, not the bracket
