| Amperage Rating | : | 20 A |
| Body Material | : | Thermoplastic |
| Connection Type | : | Plug-In |
| Frame Type | : | QFGA2N |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug-On |
| Number of Poles | : | 1 |
| Temperature Rating | : | 40 deg C |
| Terminal Type | : | Load Lug |
| Trip Type | : | Thermal Magnetic |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 12 to 10 AWG Aluminum, 14 to 10 AWG Copper |

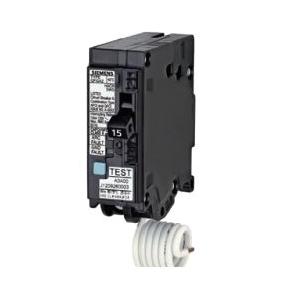

Siemens plug-on electronic breakers are the perfect solution to wiring made easier. The design allows for the same reliable installation method. The small footprint allows for over 4 in of wire bending space. The neutral clip is the same, trusted connection as the line side clip. The CAFCI plug-on breakers now have a single load lugs only with the neutral lug removed. These breakers can be installed in the same manner as the thermal magnetic breakers. This allows the installer to land ground and neutral conductors in the load center before installing the breaker and load conductor.
Siemens Circuit Breaker, 20 A, 120 VAC, 10 kA Interrupt Rating, 1 Poles, Plug-In Connection, QFGA2N Frame, Thermal Magnetic Trip, Load Lug Terminal, 12 to 10 AWG Aluminum, 14 to 10 AWG Copper Wire, Plug-On Mounting, 40 deg C, Thermoplastic Body
- Load lugs only on the CAFCI breakers
- Trusted plug-on neutral connection
- LED indicators for troubleshooting
- Insta-wire connectors
