| Amperage Rating | : | 15 A |
| Connection Type | : | Plug-In |
| Frame Type | : | MP-GAT2 |
| Height | : | 4-1/2 in |
| Interrupt Rating | : | 10 kA |
| Length | : | 1 in |
| Number of Poles | : | 1 |
| Voltage Rating | : | 120 VAC |
| Width | : | 3 in |
| Wire Size | : | 12 to 8 AWG, 14 to 8 AWG |
Two state-of-the-art technologies combined in one device. Introducing the dual function circuit breaker that provides arc-fault and ground fault protection in one device. The 2014 National Electrical Code (NEC®) requires arc-fault protection on kitchen and laundry circuits where ground fault protection is currently a requirement. One solution to meet this code is to pair an AFCI circuit breaker with a GFCI receptacle. The dual function breaker will replace the arc-fault breaker and the ground fault receptacle. Additionally, the breaker will help eliminate the use of two separate devices and improve cost savings.

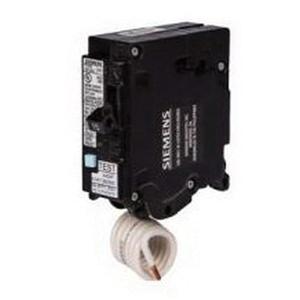

Siemens Dual Function AFCI/GFCI Circuit Breaker, 15 A, 120 VAC, 10 kA Interrupt Rating, 1 Poles, Plug-In Connection, MP-GAT2 Frame, 12 to 8 AWG, 14 to 8 AWG Wire, 3 in Width, 1 in Length, 4-1/2 in Height
- Plug-in or bolt-on branch circuit breakers for Siemens load centers and panelboards
- Self-test and lockout feature as required by UL 943 effective June 2015
- Saving time - ease of installation - only one product to install vs two
- Saving money - two safety devices combined into one
- LED trip indicators - a Siemens exclusive
- Both lugs at the same angle - for easier wiring
