| Amperage Rating | : | 30 A |
| Contact Configuration | : | TPST |
| Dimensions | : | 5.4 in L x 7.7 in W x 8 in H |
| Disconnect Type | : | Enclosed Non-Fusible |
| Electrical Connection | : | Mechanical Lug |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 7-1/2 hp |
| IP Rating | : | IP20 |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Number of Poles | : | 3 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph, 3 ph |
| Temperature Rating | : | -20 to 120 deg F |
| Voltage Rating | : | 240/250 VAC/VDC |

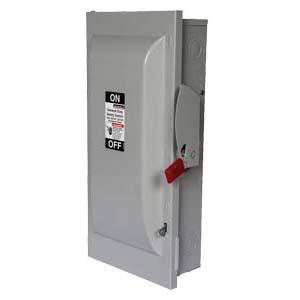

Siemens VBII Safety Switch, 240/250 VAC/VDC, 30 A, 60 Hz, 1 ph, 3 ph, 3 Pole, 7-1/2 hp HP Rating, TPST, Disconnect Type: Enclosed Non-Fusible, 3 Wires, Mechanical Lug, NEMA 1, IP20 IP Rating, -20 to 120 deg F, Surface Mount, Steel, 5.4 in L x 7.7 in W x 8 in H
- Service entrance labeled suitable for 3 ph motor loads
