| Amperage Rating | : | 100 A |
| Contact Configuration | : | DPST |
| Dimensions | : | 7.4 in L x 11.7 in W x 23.1 in H |
| Disconnect Type | : | Fusible |
| Electrical Connection Type | : | Mechanical Lug |
| Enclosure Type | : | NEMA 3R |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 20 hp |
| IP Rating | : | IP14 |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph, 3 ph |
| Temperature Rating | : | -29 to 85 deg C |
| Voltage Rating | : | 240/250 VAC/VDC |
| With Neutral/Without Neutral | : | With Neutral |

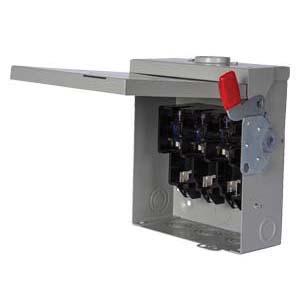

Siemens VBII Safety Switch, 240/250 VAC/VDC, 100 A, 60 Hz, 1 ph, 3 ph, 2 Pole, 20 hp HP Rating, DPST, Disconnect Type: Fusible, With Neutral With Neutral/Without Neutral, 3 Wires, Mechanical Lug Electrical Connection Type, NEMA 3R, IP14 IP Rating, -29 to 85 deg C, Surface Mount, Steel, 7.4 in L x 11.7 in W x 23.1 in H
- Service entrance labeled suitable for 3 ph motor loads
