| Amperage Rating | : | 125 A |
| Breaker Type | : | Main Lug |
| Bus Material | : | Copper |
| Bus Rating | : | 125 A |
| Color | : | Gray |
| Dimensions | : | 15-1/2 in L x 13 in W x 5 in H |
| Finish | : | Enamel |
| Interrupt Rating | : | 100000 A |
| Load Regulation | : | 125 A |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Neutral Type | : | Solid |
| Number of Circuits | : | 16 |
| Number of Spaces | : | 8 |
| Phase | : | 1 ph |
| Series | : | EQ® Series |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 3-Wire |
Code gauge steel enclosure, 1 ph, three wire, solid neutral, eight space/16 circuits one pole, four QP breakers 2 pole, 120/240 VAC, 10000 air, HS-hubs sold separately, one piece copper bus bar, 100% circuit breaker twist outs, positive load side circuit breaker hook rail, suitable for use as service equipment when a main breaker (125 A maximum) is back fed in a branch position and used with main breaker retainer clip no MBR1, when used as service equipment, any unused neutral position may be used for equipment grounding, rotate entire device 180 deg for bottom feed, gray enamel finish, UL listed, complies fully with NEC and UL requirements for Class CTL, 12-1/8 x 14-3/4 x 4-1/4 in.

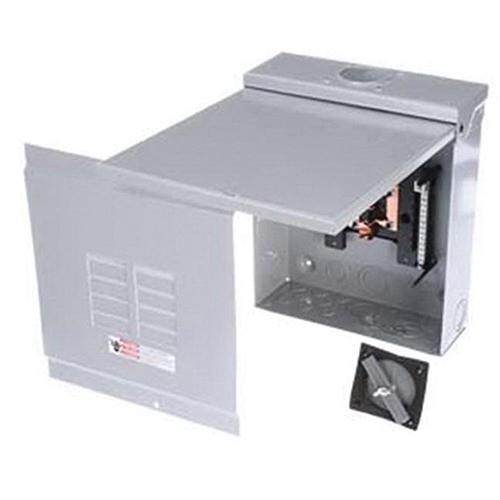

Siemens Small Circuit Load Center, Series: EQ® Series, 125 A, 120/240 V, 100000 A Interrupt, 3-Wire Wiring Configuration, Main Lug Breaker, 1 ph, 125 A Bus Rating, 125 A Load Regulation, 8 Spaces, 16 Circuits, Copper Bus, Solid Neutral Type, Surface Mount, Steel, Enamel, Gray, 15-1/2 in L x 13 in W x 5 in H
- For use as service entrance equipment
- EQ load centers with main lugs feature a combination trim box in one package
- Interiors offer removal in seconds
- One piece bus bar construction designed for use only with circuit breakers
- Positive load side circuit breaker hook rails
