SharkBite™ PSHFEA1

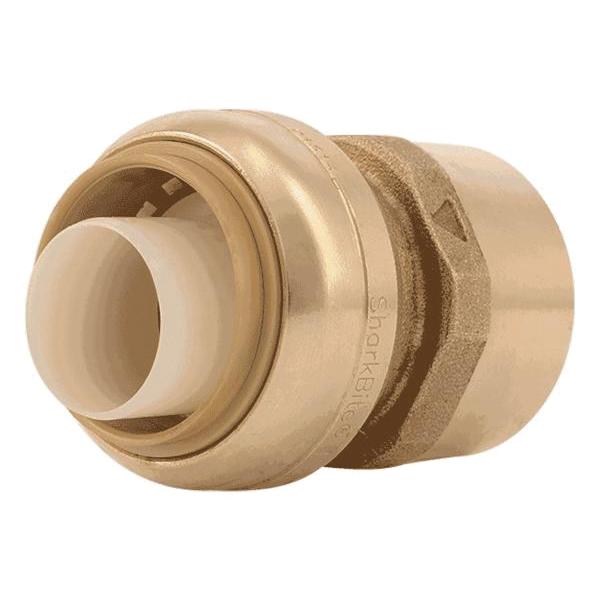

SharkBite™ U094LF Straight Female Adapter, 1 in Push-to-Connect x 1 in FNPT, Brass, Chrome-Plated/Natural Brass

Manufacturer: Reliance Worldwide Corporation
Part #: PSHFEA1
Customer Part #:
Login for Availability
Login for Price
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      FNPT
Connection Type      :      Push-Fit|FNPT
Dimensions      :      2.17 in L
Finish      :      Chrome-Plated/Natural Brass
Fitting Type      :      Adapter
For Use With      :      Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes
Material Construction      :      DZR Lead-Free Brass
Material      :      Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F

Innovative push-to-connect design makes for quick and easy transition between CTS pipe to an MNPT threaded connection. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

SharkBite™ Straight Female Adapter, Adapter Fitting, Connection Size 1: 1 in, Connection Type 1: Push-to-Connect, Connection Size 2: 1 in, Connection Type 2: FNPT, Push-Fit|FNPT Connection, Brass, Material Construction: DZR Lead-Free Brass, Finish: Chrome-Plated/Natural Brass, For Use With: Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes, 2.17 in L, 200 psi, 200 deg F

  • No special tools, crimping, glue or soldering is needed
  • Can be installed on wet lines
  • Approved for underground and behind the wall applications with no access panels (wrapping required when burying underground)
  • Can be easily removed using a disconnect clip or disconnect tongs (both sold separately)
  • Remove using a disconnect clip or disconnect tongs
  • Large diameter fittings (1-1/4 to 2 in) require a stiffener when connecting to PEX pipe
