SharkBite™ PSHTVLV34

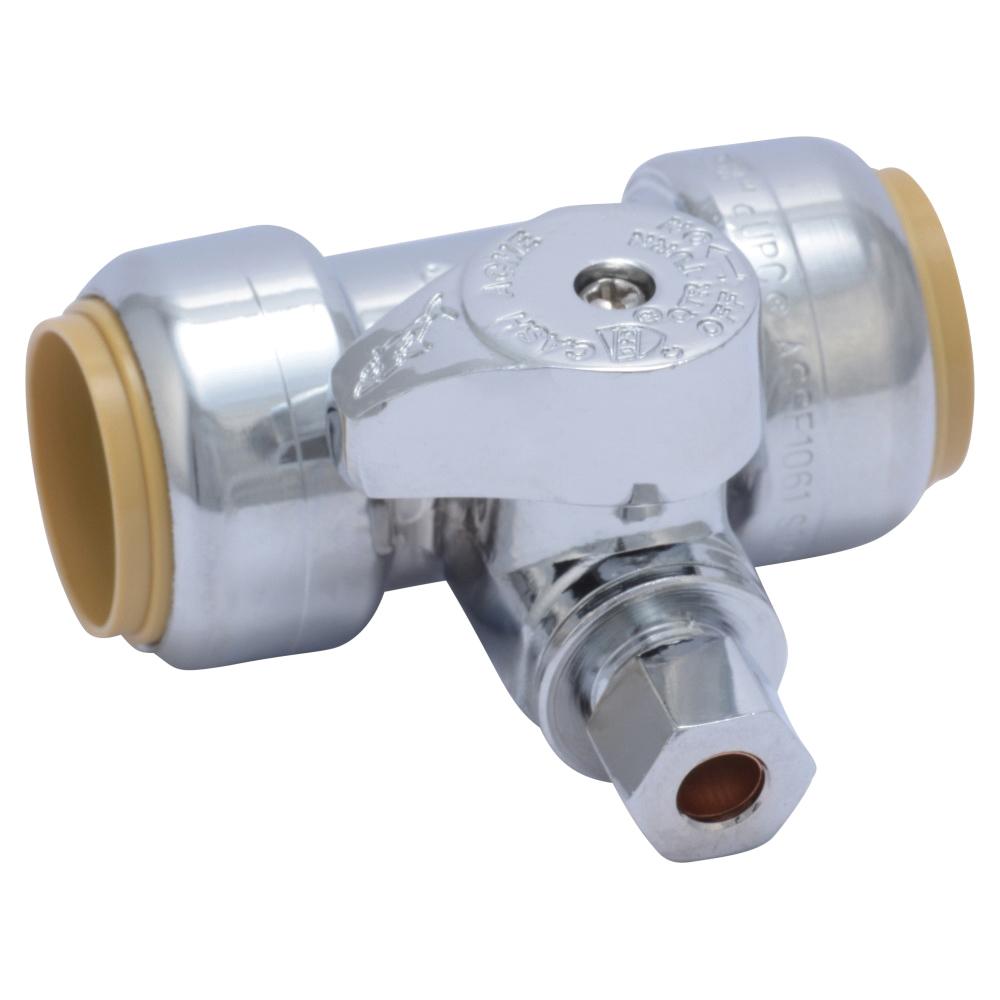

SharkBite™ 24985 Tee Stop, 3/4 x 3/4 x 1/4 in Nominal, Push-to-Connect x Push-to-Connect x Compression, 200 psi

Manufacturer: Reliance Worldwide Corporation
Part #: PSHTVLV34
Customer Part #:
Login for Availability
Login for Price
Additional Information      :      1.91 in Top to inlet Center, Lead-Free
Body Material      :      Brass
Connection Type      :      Push-to-Connect x Push-to-Connect x Compression
Dimensions      :      2.61 in L
Finish      :      Chrome-Plated
Nominal Size      :      3/4 x 3/4 x 1/4 in
Pressure Rating      :      200 psi
Softgoods Material      :      EPDM
Temperature Rating      :      200 deg F

Add a new line to a fixture by tapping into a 1/2 or 3/4 in pipe. Features a 1/4-turn full-port brass ball valve that allows for easy On/Off control of the supply line. innovative push-to-connect design makes for quick and easy installation. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

SharkBite™ Tee Stop, 3/4 x 3/4 x 1/4 in Nominal, Push-to-Connect x Push-to-Connect x Compression Connection, 200 psi, EPDM Softgoods, Brass Body, Finish: Chrome-Plated, 200 deg F, 2.61 in L, Additional Information: 1.91 in Top to inlet Center, Lead-Free

  • Sleek chrome finish for an attractive appearance
  • 1/4-turn full-port brass ball valve
  • Compatible with PEX, copper, CPVC, PE-RT and HDPE pipes
  • No special tool, crimping, glue or soldering is needed
  • Can be installed in wet lines
  • Can be rotated for easier and faster installation
