| Actuator Type | : | Quarter-Turn Handle |
| Additional Information | : | Angled Configuration, Lead-Free, Water Media, Water Service |
| Body Material | : | Brass |
| Connection Type | : | Push-to-Connect |
| Dimensions | : | 1.51 in L x 2.58 in H |
| Domestic/Import | : | Import |
| Nominal Size | : | 1/2 x 1/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 200 psi |
| Softgoods Material | : | EPDM/Polysulfone |
| Temperature Rating | : | 200 deg F |
Typically used on stub out coming out of the wall. Used to control and shut-off water flow to fixtures or appliances for maintenance and repair. Innovative design with 1/2 in push-to-connect inlet makes for quick installation and 1/4-turn full-port brass ball valve makes for easy operation. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

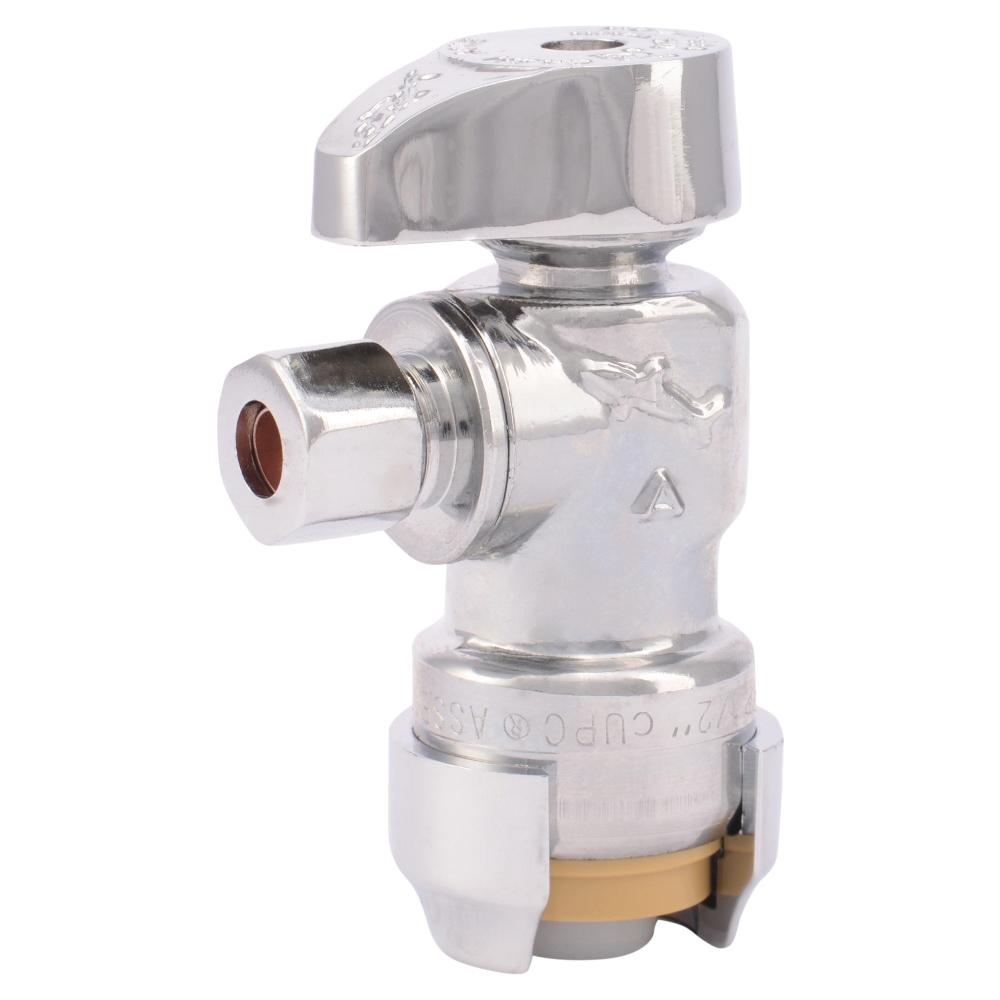

SharkBite™ Supply Stop Valve, 1/2 x 1/4 in Nominal, Push-to-Connect Connection, 200 psi, Full Port, EPDM/Polysulfone Softgoods, Brass Body, Quarter-Turn Handle Actuator, 200 deg F, 1.51 in L x 2.58 in H, Domestic/Import: Import, Additional Information: Angled Configuration, Lead-Free, Water Media, Water Service
- Sleek chrome finish for an attractive appearance
- No special tools, crimping, glue or soldering required
- Can be installed in wet lines
- Remove using a disconnect clip or disconnect tongs
