| Additional Information | : | 16 AWG Cable |
| Outputs | : | 16 |
| Overall Depth | : | 3/4 in |
| Overall Length | : | 4-3/4 in |
| Overall Width | : | 4-7/8 in |
| Voltage Rating | : | 12 V |
MWR-WE13UN is the same controller as MWR-WE13N with updated packaging and manuals.

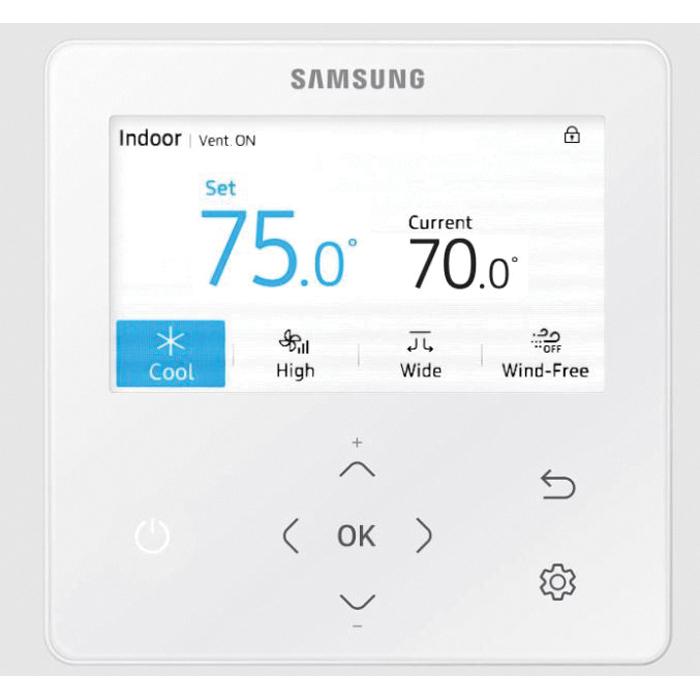

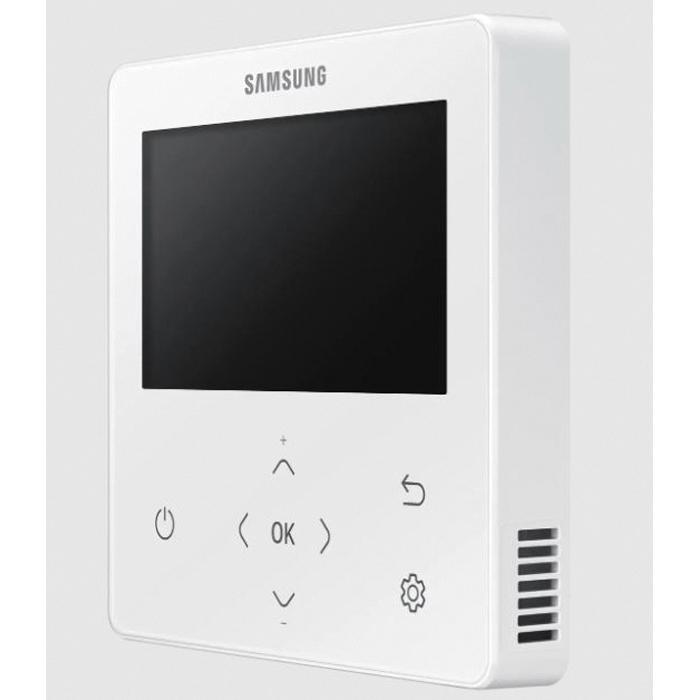

Samsung Premium Wired Indoor Unit Controller, 12 V, 16 Outputs, 4-3/4 in Overall Length, 4-7/8 in Overall Width, 3/4 in Overall Depth, Additional Information: 16 AWG Cable
- Air handler operation on-off
- Air handler operation mode, set temperature, air flow direction, fan speed
- Discharge air temperature setting (with supported indoor unit models)
- Quiet and sleep modes
- Error display
- Filter replacement alarm display and reset
- Single indoor unit control or multiple unit control (maximum 16-units)
- Upper/lower temperature setting
- Automatic operation stop function to turn off connected units if controller is not touched for specified amount of time (1 to 12 hr)
- Energy saving operation mode
- Weekly operating schedule
- Able to set desired A/C operation mode, setting temperature and fan speed to operate based on weekly schedules
- Able to apply schedule exception day
- Different button permission levels
- Backlight display
- Real time clock function, current time/day display function
- Built-in room sensor
- Display set temperature or room temperature
- Service mode support (indoor unit cycle data monitoring, option code monitoring and setting and dip switch state monitoring)
- Two-conductor connection
