| Cable Length | : | 328 ft |
| Outputs | : | 16 |
| Overall Depth | : | 3/4 in |
| Overall Length | : | 3-11/16 in |
| Overall Width | : | 4-13/16 in |
| Suitable For Use With | : | Samsung NASA DVM S, CAC, RAC and FJM Indoor Units Only |
| Voltage Rating | : | 12 V |

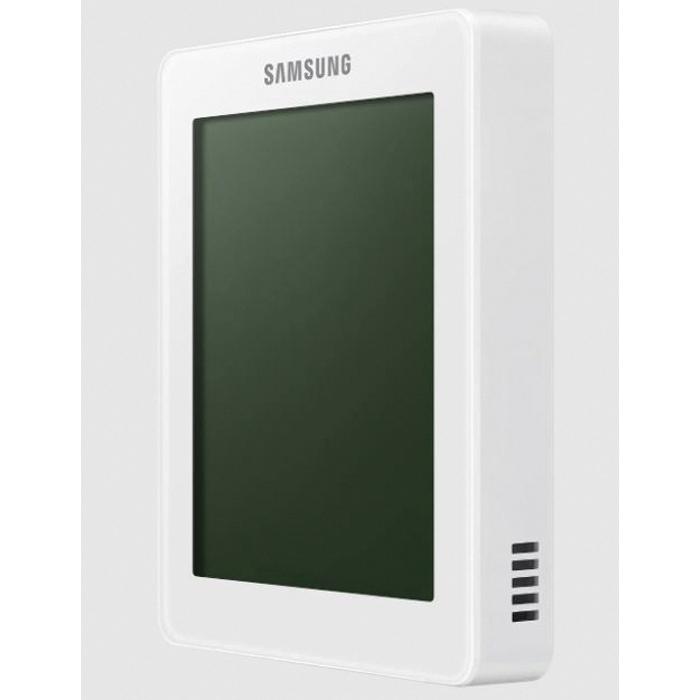

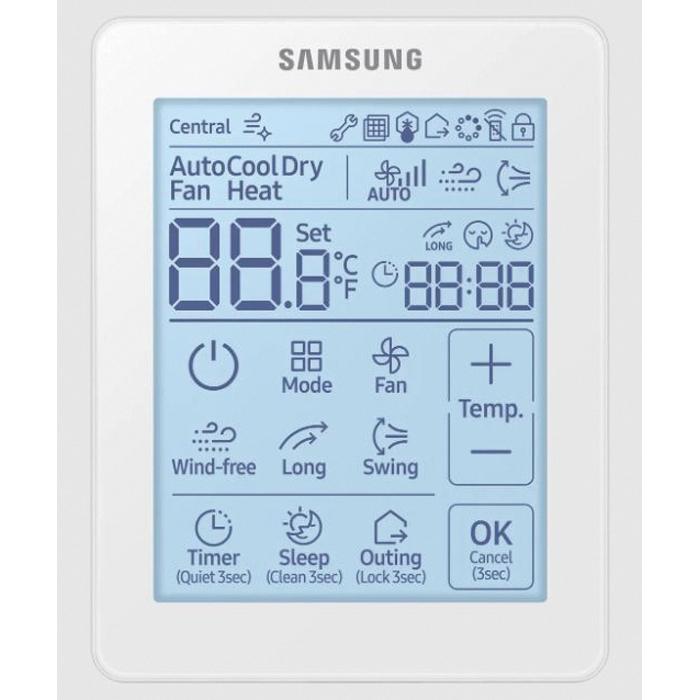

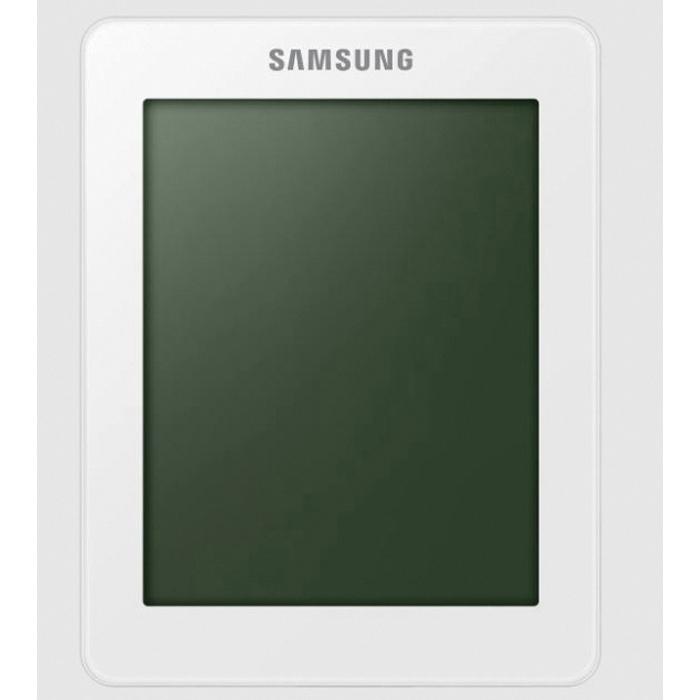

Samsung Simple Touch Controller, 12 V, 16 Outputs, 328 ft Cable Length, 3-11/16 in Overall Length, 4-13/16 in Overall Width, 3/4 in Overall Depth, For Use With: Samsung NASA DVM S, CAC, RAC and FJM Indoor Units Only
- Internal temperature sensor
- Backlight display
- Built-in infrared receiver to allow control of indoor unit wirelessly with AREH03U, AR-EH04U, AR-KH03U or AR-KH04U wireless controllers
- Indoor unit operation on-off, operation mode, set temperature, louver position (cassette, ceiling, wall units) and fan speed settings
- Error display
- Filter replacement alarm display and reset
- Single indoor unit control or multiple unit control (maximum 16-units)
- Partial controller button lock (on-off, temperature setting, fan speed, timer function, louver swing, sleep function, quiet function, outing function and operation mode buttons)
- Upper and lower temperature setting restriction
- Heat, cool, dry, fan and auto mode skip options (skips specified mode on wired controller)
- Single event timer function (on-off control, 30 min to 24 hr timer setting options)
- System/indoor unit function and operation indication (defrost, error, restricted controller, central control and SPI status)
- Service mode for connected indoor unit operation monitoring, addressing and setup
- Can be used to specify mode master while connected to a single indoor unit when used with heat pump systems to control system mode (heating or cooling)
- Outing function to keep a minimum heating (61 to 72 deg F) and cooling (77 to 86 deg F) temperature while you are away
- When outing mode is activated, the unit will operate at the specified outing temperature
- If indoor temperature is 9 deg F difference from desired outing temperature, the indoor unit will turn on
- If indoor temperature is the same as desired outing temperature, the indoor unit will turn off automatically
- This is repeated depending on indoor temperature for 12 hr
- After 12 hr, outing mode is released/canceled
