| Additional Information | : | 32 to 104 deg F Temperature Rating, 30 to 90% Humidity Range |
| Connection Type | : | Wire |
| Dimensions | : | 5-1/8 in L x 7-9/32 in W x 1-1/8 in D |
| Specifications | : | 16 Indoor Unit, 4-Wire |
| Suitable For Use With | : | Model AM****N***/AA DVM S Indoor Units, AC0***N**CH/AA Single Zone CAC Systems, AJ0**T*****/AA, AJ0**B*****/A Slim Duct Cassette Systems |
| Voltage Rating | : | 12 V |

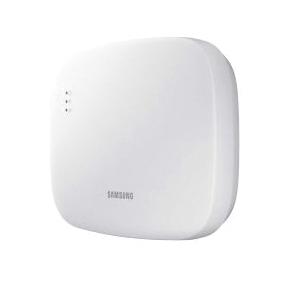

Wi-Fi adapter for DVM S systems and single zone CAC systems (AC models). MIM-H04UN and MIM-H05UN allows remote control via Samsung's SmartThings app. One-Wi-Fi adapter can control up to 16-indoor units connected to a single DVM S system or connect a maximum of 16-Wi-Fi adapters for control of up to 64-indoor units on the same system. Connection of multiple adapters allows access to individual indoor units for up to 16 different tenants. MIM-H04UN and MIM-H05UN supports the same connection and functions. MIM-H05UN uses a different processor and firmware.
Samsung Wi-Fi Adapter, 12 V, Wire Connection Type, 5-1/8 in L x 7-9/32 in W x 1-1/8 in D, 16 Indoor Unit, 4-Wire, For Use With: Model AM****N***/AA DVM S Indoor Units, AC0***N**CH/AA Single Zone CAC Systems, AJ0**T*****/AA, AJ0**B*****/A Slim Duct Cassette Systems, Additional Information: 32 to 104 deg F Temperature Rating, 30 to 90% Humidity Range
- Wi-Fi adapter to allow remote control and monitoring of Samsung DVM S indoor units(AM****N***/AA), single zone CAC systems (AC0***N****/AA) and FJM systems with slim duct, cassette and/or console units connected (AJ0**T*****/AA, AJ0**B*****/AA) from a mobile device (Android or iOS) via SmartThings app available on Google Play or iTunes app stores
- System connectivity - single Wi-Fi adapter to control and monitor up to 16-indoor units across multiple systems
- Maximum 16 Wi-Fi adapters for single DVM S system (control up to 64-indoor units)
- S-Convertor and SNET Pro 2 service software required to configure connection of multiple Wi-Fi-adapters to DVM S systems
- User account - maximum 200 accounts, Wi-Fi adapter quantity per account - 200 units
- Control and monitor indoor unit (individual/group/scene) - power status, mode, set temperature, room temperature, fan speed and supply air louver position
- Individual power monitoring up to 16 outdoor units (outdoor module can be monitored)
- Power consumption trend (daily/weekly/monthly)
- Seven days scheduling for a single unit or multiple indoor units
- Logic control with automation
- Geo fencing capable
- Voice control via mobile device (compatible with Bixby 2.0 and above and other voice control services)
- Firmware update by using micro SD card
