| Frequency Rating | : | 50/60 Hz |
| Inputs | : | 2 |
| Outputs | : | 1 |
| Overall Depth | : | 1-1/2 in |
| Overall Length | : | 6-5/16 in |
| Overall Width | : | 8 in |
| Suitable For Use With | : | Samsung DVM S Series Systems |
| Voltage Rating | : | 100 - 240 VAC |

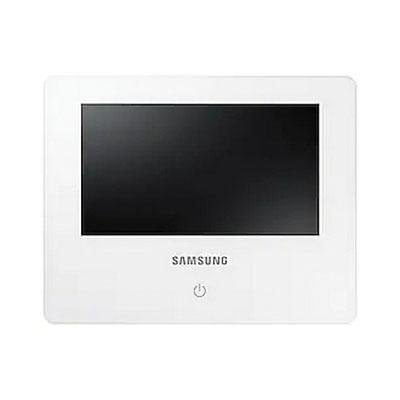

Samsung Touch Centralized Controller, 100 - 240 VAC, 50/60 Hz, 2 Inputs, 1 Outputs, 6-5/16 in Overall Length, 8 in Overall Width, 1-1/2 in Overall Depth, For Use With: Samsung DVM S Series Systems
- 7 in touch LCD controller
- Maximum 128 indoor units and Samsung ERV's
- Allows creation of zones for indoor unit grouping (12 maximum) with customizable zone icons
- Can connect and control up to 16 X DVM S systems
- 2 x digital input terminals for dry-contact connection to disable/enable all connected equipment
- 1 x digital output terminal for system operation status output, 12 VDC, 10 mA max
- SD card slot for data backup and future software updates
- Scheduling (maximum 10 schedules)
- Indoor unit operation mode, set temperature, fan speed, controller use/restriction enable/disable, louver control, and filter reminder reset setting/checking
- Cooling and heating temperature (desired temperature) limit setting
- Group/zone control
- Operation mode restriction setting
- Screen lock
- Restrict - ON/OFF, mode, set temperature, fan speed, advanced settings, and remote control use (basic indoor unit settings) for daily users
- Menu lock (restrict indoor unit control, schedule setting/changing, and controller settings for daily users)
- LCD ON/OFF button/indicator on front of controller to turn display ON/OFF (blue indicator: 1 or more indoor units are ON. Red indicator: indoor unit/system error is present)
