| Additional Information | : | CAC Classification, 2020 Version, Deluxe Feature |
| BTU Rating | : | 11900 Btu/hr Cooling, 13000 Btu/hr Heating |
| CFM Rating | : | 216 cfm, 318 cfm, 371 cfm |
| Connection Size | : | 1/4 in, 3/8 in |
| Connection Type | : | Flared |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Model | : | AJ012TNNDCH/AA |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 10 in |
| Overall Length | : | 22-5/8 in |
| Overall Width | : | 22-5/8 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | FJM Series |
| Sound Level | : | 27 dBA, 31 dBA, 35 dBA |
| Suitable For Use With | : | Samsung AJ020TXJ2CH/AA (JXH20J2T) and AJ024TXJ3CH/AA (JXH24J3T) Outdoor Model Condensing Units |
| Voltage Rating | : | 208 - 230 V |

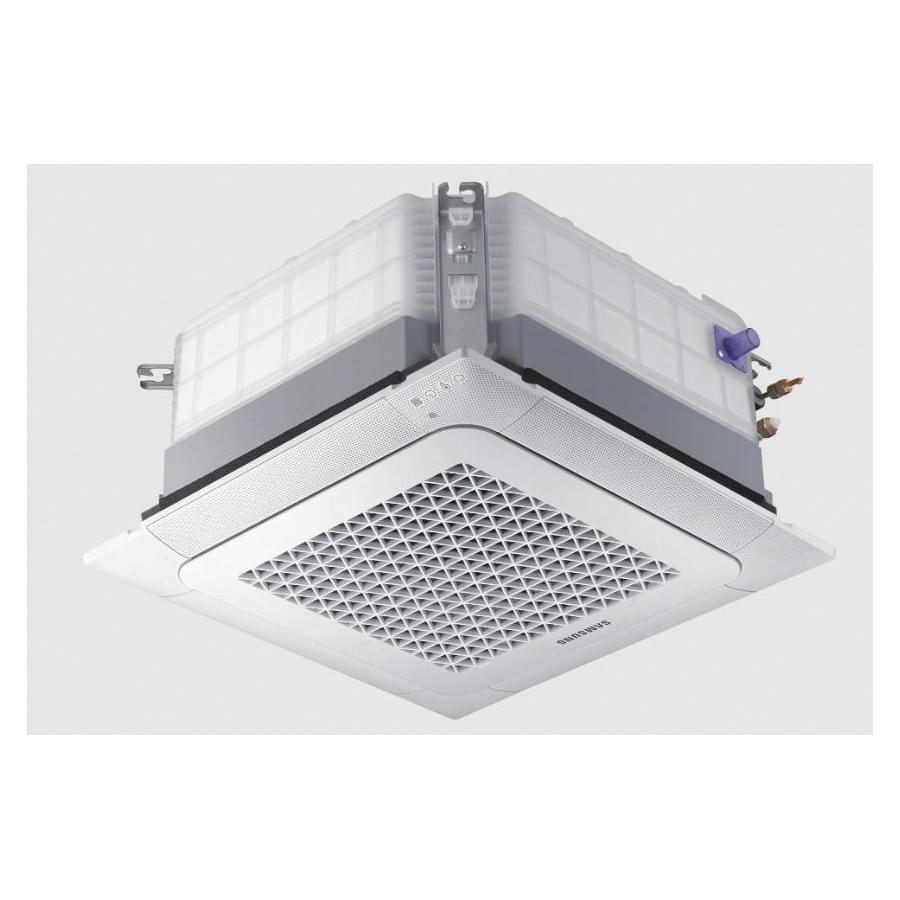

Samsung Mini 4-Way Cassette Indoor Unit, Series: FJM Series, Model: AJ012TNNDCH/AA, 208 - 230 V, 60 Hz, 1 ph Phase, 3 Fan Speeds, 11900 Btu/hr Cooling, 13000 Btu/hr Heating, 216 cfm, 318 cfm, 371 cfm, Flared Connection, 1/4 in, 3/8 in Connection, R-410A Refrigerant, 27 dBA, 31 dBA, 35 dBA Sound Level, Steel, Finish: Galvanized, 22-5/8 in Overall Length, 22-5/8 in Overall Width, 10 in Overall Height, For Use With: Samsung AJ020TXJ2CH/AA (JXH20J2T) and AJ024TXJ3CH/AA (JXH24J3T) Outdoor Model Condensing Units, Additional Information: CAC Classification, 2020 Version, Deluxe Feature
- The indoor unit shall feature "WindFree™" mode*. When enabled, in cooling mode, as room temperature nears set temperature, the unit will close its louvers and will disperse air into the space through thousands of micro-holes on the fascia panel preventing cold air drafts on occupants by providing cool still air
- The WindFree™ 4-way cassette can be configured for 2-stage operation, cooling the space with the louver open (fixed or swing) until the room temperature nears set temperature. Once room temperature is near set temperature, WindFree™ operation will start automatically
- The WindFree™ panel (PC4SUFMUN) has an integral humidity sensor that will open the louvers for standard cool mode when space conditions could potentially cause condensation formation on the panel surface
- Electro-static, washable, pleated filters as standard (included with fascia panel)
- Built in condensate pump with maximum 29" lift from the bottom of the unit, check valve, and float switch that disables indoor unit during overflow detection
- Knock-out for outside air capability (with booster fan connection)
- Fascia panel shall have LED indicator lights, IR receiver, and 4 motorized louvers with independent control
- High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- The indoor unit shall be powered by the outdoor unit
- System energy consumption can be viewed using the Samsung SmartThings mobile app (not revenue grade, for reference only)
