| Amperage Rating | : | 0.45 A |
| BTU Rating | : | 11900 Btu/hr Cooling, 13000 Btu/hr Heating |
| CFM Rating | : | 378 cfm |
| Connection Type | : | 1/4 in Flared Liquid x 3/8 in Flared Suction |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 7-13/16 in |
| Overall Length | : | 17-5/16 in |
| Overall Width | : | 35-7/16 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | FJM Series |
| Sound Level | : | 30 dBA |
| Voltage Rating | : | 208 - 230 VAC |

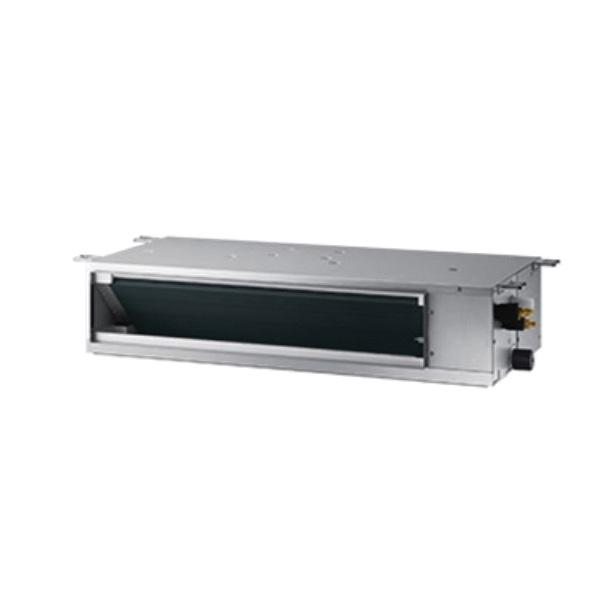

Samsung Slim Duct Indoor Unit, Series: FJM Series, 208 - 230 VAC, 0.45 A, 60 Hz, 1 ph Phase, 3 Fan Speeds, 11900 Btu/hr Cooling, 13000 Btu/hr Heating, 378 cfm, 1/4 in Flared Liquid x 3/8 in Flared Suction Connection, R-410A Refrigerant, 30 dBA Sound Level, Steel, Finish: Galvanized, 17-5/16 in Overall Length, 35-7/16 in Overall Width, 7-13/16 in Overall Height
- High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- Built in condensate pump with maximum 29" lift from the bottom of the unit, check valve, and float switch that disables indoor unit during overflow detection
- System energy consumption can be viewed using the Samsung SmartThings mobile app (not revenue grade, for reference only)
- The indoor unit shall be powerd by the outdoor unit
- Construction - The unit shall be constructed of insulated, galvanized steel
- Heat Exchanger - The heat exchanger shall be mechanically bonded fin to copper tube
- Indoor Fan - Indoor fan is a centrifugal type with a single fan motor
