| Amperage Rating | : | 1.2/3.1/4 A Cooling, 1.1/4.1/4.8 A Heating |
| Color | : | White |
| Compressor Type | : | BLDC Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 12000 Btu/hr |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Drive Type | : | Inverter |
| EER Rating | : | 14.05 |
| Finish | : | Galvanized/Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 10 |
| Heating BTU Rating | : | 13600 Btu/hr |
| Heating CFM Rating | : | 1400 cfm Condenser, 212 to 325 cfm Evaporator |
| Heating Operating Temperature | : | 5 to 115 deg F |
| Heating Sound Level | : | 45 dBA |
| Material | : | Steel |
| Mounting Type | : | Wall |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 21-9/16 in |
| Overall Length | : | 11-1/4 in |
| Overall Width | : | 31-3/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 50 W Condenser, 27 W Evaporator |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 21 |
| Voltage Rating | : | 208 - 230 V |

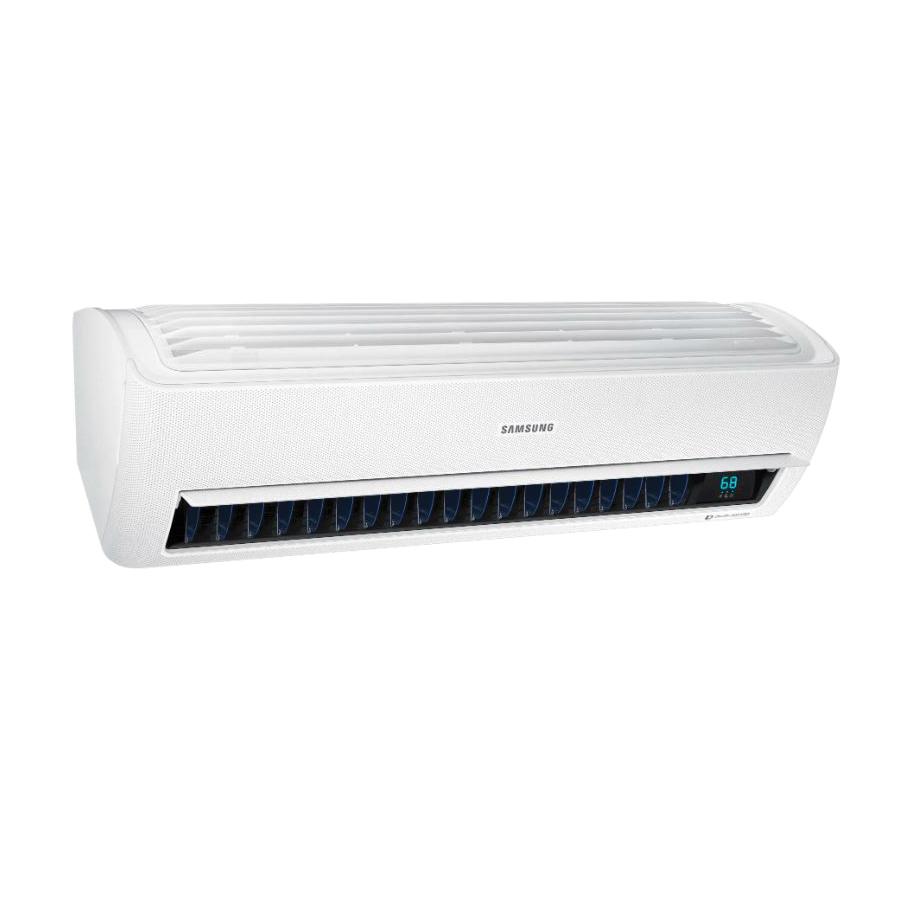

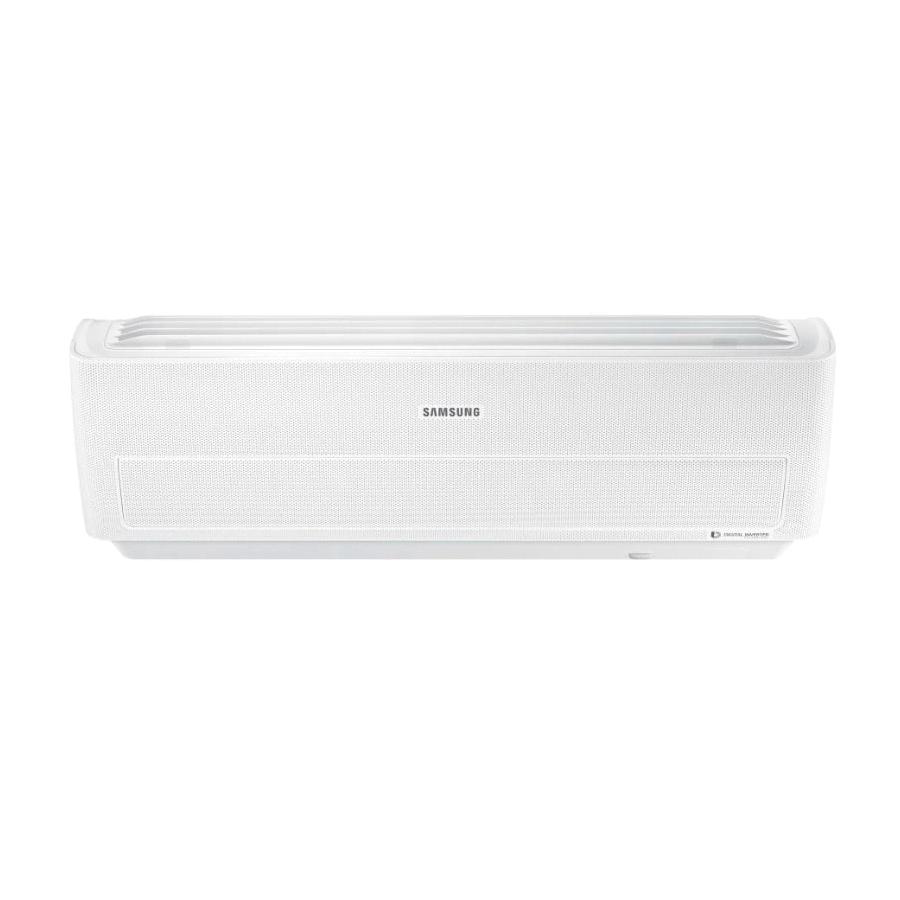

Samsung's exclusive WindFree™* cooling technology provides users with a cool indoor climate without the discomfort of direct cold airflow. It's an advantage no other system can match.
Samsung WindFree™ Heat Pump Split System Outdoor Unit, 208 - 230 V, 1.2/3.1/4 A Cooling, 1.1/4.1/4.8 A Heating, 50 W Condenser, 27 W Evaporator, 60 Hz, 1 ph Phase, 3 Fan Speeds, 13600 Btu/hr Heating, 12000 Btu/hr Cooling, 1400 cfm Condenser, 212 to 325 cfm Evaporator Heating CFM Rating, 14.05 EER Rating, 21 SEER, 10 HSPF, Flared Connection, BLDC Rotary Compressor, R-410A Refrigerant, 15 A Fuse Rating, Inverter Drive, 45 dBA Heating Sound Level, Wall Mounting, Steel, Finish: Galvanized/Powder-Coated, White, 5 to 115 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 11-1/4 in Overall Length, 31-3/32 in Overall Width, 21-9/16 in Overall Height
- The indoor unit shall feature "Wind-Free™" mode*. In cooling mode, as room temperature nears set temperature, the unit will close its louver and willdisperse air into the space through over 20,000 micro-holes on the front of the indoor unit preventing cold air drafts on occupants
- The indoor unit shall have Wi-Fi capability as standard for control and monitoring with the Samsung Smart Home app (Android, iOS)
- Outdoor unit shall provide 208/230V power to indoor unit via 14 AWG X 3 interconnect power cable
- Electro-static, washable, main filter as standard accessible from the front/top of unit
- Advanced air filtration
- Indoor unit chassis shall be UL94 VO with a galvanized steel mounting bracket
- The outdoor unit shall be galvanized steel with a baked on powder coated finish for durability
- The indoor unit shall have easy-access to wire, pipe, and drain connections via access panel on front of unit for easier installation and service
- The heat exchanger shall be mechanically bonded fin to copper tube refrigerant System
- The compressor shall be hermetically sealed, inverter controlled, BLDC Rotary
- Refrigerant flow shall be controlled by electronic expansion valve at outdoor unit Indoor Fan
- The indoor fan shall be a single, antibacterial cross-flow type
- Automatic (motorized) vertical swing louver (up/down)
- The system shall have a built in Wi-Fi adapter as standard to allow control remotely
- Control signal shall be DDC type signal
- Interconnect control wiring shall be 16 AWG X 2 shielded wire between outdoor and indoor units
- The indoor unit shall ship with a wireless controller and batteries as standard
