| Amperage Rating | : | 19 A |
| BTU Rating | : | 12000 Btu/hr |
| CFM Rating | : | 1342 cfm |
| EER Rating | : | 12.75 |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 9 |
| Material | : | Steel |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 11-3/32 in |
| Overall Width | : | 35-7/16 in |
| SEER Rating | : | 20 |
| Series | : | Novus Series |
| Sound Level | : | 59 dBA |
| Voltage Rating | : | 115 V |

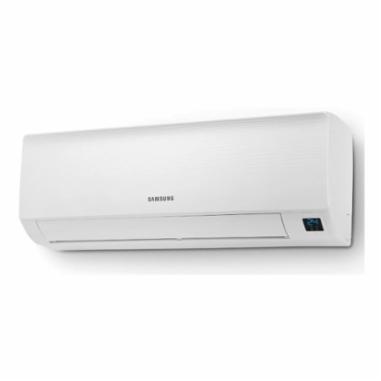

The Novus mini-split system provides a quality solution for heating or cooling a single room or zone.
Samsung Split System Indoor Air Conditioner, Series: Novus Series, 115 V, 19 A, 60 Hz, 3 Number of Fan Speeds, 12000 Btu/hr, 1342 cfm CFM Rating, 12.75 EER, 20 SEER, HSPF: 9, 59 dBA, Steel, Galvanized, 35-7/16 in Overall Width, 11-3/32 in Overall Height
- Outdoor unit shall provide 120 V power to indoor unit via 14 AWG x 5 interconnect power cable
- Electro-static, washable, main filter as standard
- Indoor unit chassis shall be UL 94V0 with a galvanized steel mounting bracket
- The outdoor unit shall be galvanized steel with a baked on powder-coated finish for durability
- The heat exchangers shall be mechanically bonded fin to copper tube
- The compressor shall be hermetically sealed, inverter controlled, BLDC Rotary
- Refrigerant flow shall be controlled by electronic expansion valve at outdoor unit
- The indoor fan shall be a single, anti-bacterial cross-flow-type
- Three fan speed settings and auto setting
- Automatic (motorized) vertical (up/down) swing louver
- Control signal shall be DDC-type signal
- Interconnect wiring shall be 14 AWG x 5 wire between outdoor and indoor units
- The indoor unit shall ship with a wireless controller and batteries as standard
