| Additional Information | : | 2013 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode, Heat Pump and Heat Recovery Mode |
| Amperage Rating | : | 0.27 A |
| BTU Rating | : | 18000 Btu/hr Cooling, 20000 Btu/hr Heating |
| CFM Rating | : | 459 cfm |
| Connection Size | : | 1/4 in, 1/2 in |
| Connection Type | : | Flared |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Polystyrene/Steel |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 9-7/8 in |
| Overall Length | : | 22-5/8 in |
| Overall Width | : | 22-5/8 in |
| Phase | : | 1 ph |
| Power Rating | : | 36 W |
| Refrigerant Type | : | R-410A |
| Series | : | DVM S Series |
| Sound Level | : | 39 dBA, 36 dBA, 32 dBA |
| Suitable For Use With | : | Samsung DVM S Water and DVM Eco Systems |
| Voltage Rating | : | 208 - 230 V |

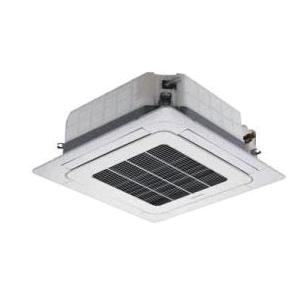

Samsung's advanced Mini 4 Way Cassette builds on the aesthetic appeal and performance of the standard 4 Way Cassette with an enhanced design. The Mini 4 Way Cassette's stylish fascia panel compliments any interior. Optional MDS (Motion Detect Sensor) is available that can learn occupancy patterns to reduce energy consumption and also reduce stratification throughout the space. MCR-SMA motion detect sensor information can be found in the controls section.
Samsung Mini 4-Way Cassette, Series: DVM S Series, 208 - 230 V, 0.27 A, 36 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 18000 Btu/hr Cooling, 20000 Btu/hr Heating, 459 cfm, Flared Connection, 1/4 in, 1/2 in Connection, R-410A Refrigerant, 39 dBA, 36 dBA, 32 dBA Sound Level, Polystyrene/Steel, Finish: Galvanized, 22-5/8 in Overall Length, 22-5/8 in Overall Width, 9-7/8 in Overall Height, For Use With: Samsung DVM S Water and DVM Eco Systems, Additional Information: 2013 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode, Heat Pump and Heat Recovery Mode
- Electro-static, washable, pleated filters as standard (included with fascia panel)
- Built in condensate pump with maximum 29" lift, check valve, and float switch that disables the indoor unit during overflow detection
- Knock-out for outside air capability
- Fascia panel shall have LED indicator lights and 4 motorized louvers with independent control (32 deg - 65 deg louver control range)
- High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- The heat exchanger shall be mechanically bonded fin to copper tube
- Indoor fan is a single turbo type
- The unit shall be operated via a wireless or wired remote control with DDC type signal
- The unit shall integrate with the Samsung NASA Controls Network Solution
