| Additional Information | : | 2014 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode |
| Amperage Rating | : | 0.25 A |
| BTU Rating | : | 9500 Btu/hr Cooling, 10500 Btu/hr Heating |
| CFM Rating | : | 290 cfm |
| Connection Type | : | Flared |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Polystyrene/Steel |
| Mounting Type | : | Wall |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 11-1/4 in |
| Overall Length | : | 7-1/2 in |
| Overall Width | : | 32-1/2 in |
| Phase | : | 1 ph |
| Power Rating | : | 37 W |
| Series | : | Neo Forte Series |
| Sound Level | : | 31 dBA, 27 dBA |
| Suitable For Use With | : | Samsung DVM S Water and DVM Eco Systems |
| Tonnage | : | 0.79 ton |
| Voltage Rating | : | 208 - 230 V |

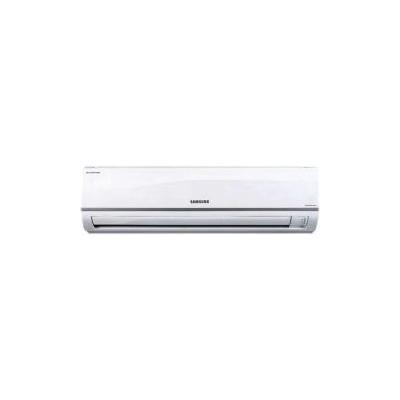

With their stylish, innovative designs, these wall-mounted air conditioners optimize comfort with cool and clean freshness for everyday living. Neo Forte models AM0**HNQDCH/AA has an internal EEV as standard.
Samsung Wall-Mount Unit, Series: Neo Forte Series, 208 - 230 V, 0.25 A, 37 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 9500 Btu/hr Cooling, 10500 Btu/hr Heating, 290 cfm, Flared Connection, Tonnage: 0.79 ton, 31 dBA, 27 dBA Sound Level, Wall Mounting, Polystyrene/Steel, Finish: Galvanized, 7-1/2 in Overall Length, 32-1/2 in Overall Width, 11-1/4 in Overall Height, For Use With: Samsung DVM S Water and DVM Eco Systems, Additional Information: 2014 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode
- Electro-static, washable, pleated filters as standard (included with unit)
- Supplemental, replaceable, anti-allergy and deodorizing filters included as standard
- The unit shall have LED indicator lights, IR receiver, and 1 motorized louver
- High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- HIPS chassis certified to UL94 V0 with galvanized steel mounting bracket
- The heat exchanger shall be mechanically bonded fin to copper tube
- Indoor fan is a single, antibacterial, crossflow type
- The unit shall be operated via a wireless or wired remote control with DDC type signal
- The unit shall integrate with the Samsung NASA Controls Network Solution
