| Additional Information | : | 13 in D |
| Amperage Rating | : | 8.8/9.2 A |
| Compressor Type | : | Twin BLDC Rotary Inverter |
| Cooling BTU Rating | : | 25000 Btu/hr |
| Cooling CFM Rating | : | 2493 cfm |
| Cooling Operating Temperature | : | 14 to 114.8 deg F |
| Cooling Sound Level | : | 54 dBA |
| EER Rating | : | 10.6, 11.8, 13 |
| Finish | : | Galvanized/Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| HSPF Rating | : | 8.3, 8.65, 9 |
| Heating BTU Rating | : | 25000 Btu/hr |
| Heating Operating Temperature | : | -13 to 75 deg F |
| Heating Sound Level | : | 58 dBA |
| Liquid Line Size | : | 1/4 in |
| Material | : | Steel |
| Overall Height | : | 39-5/16 in |
| Overall Width | : | 37 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 17.5, 18.75, 20 |
| Series | : | FJM Series |
| Suction Line Size | : | 3/8 in |
| Suitable For Use With | : | Model AR**TSFABWKNCV, AR**TSFYBWKNCV, AC0**BNNDCH/AA, AC0**BN1DCH/AA, AJ0**BNHDCH/AA Indoor Units |
| Voltage Rating | : | 208-230 V |

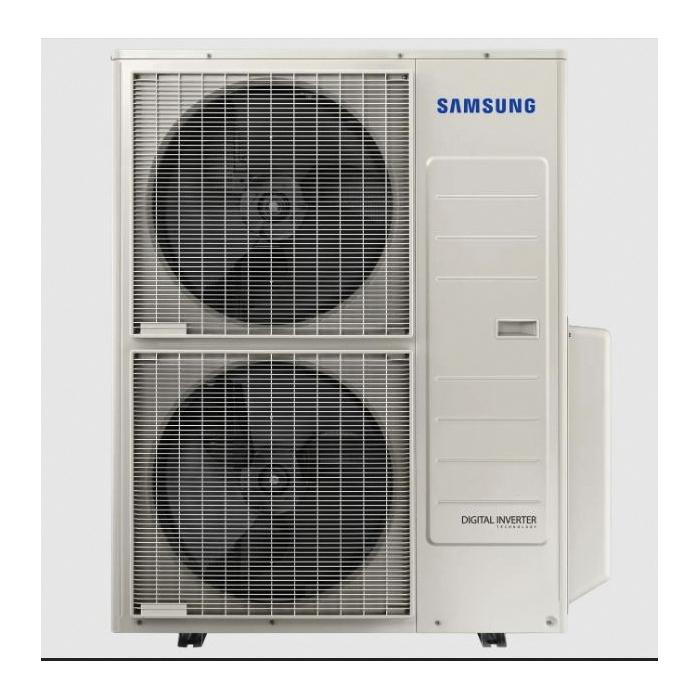

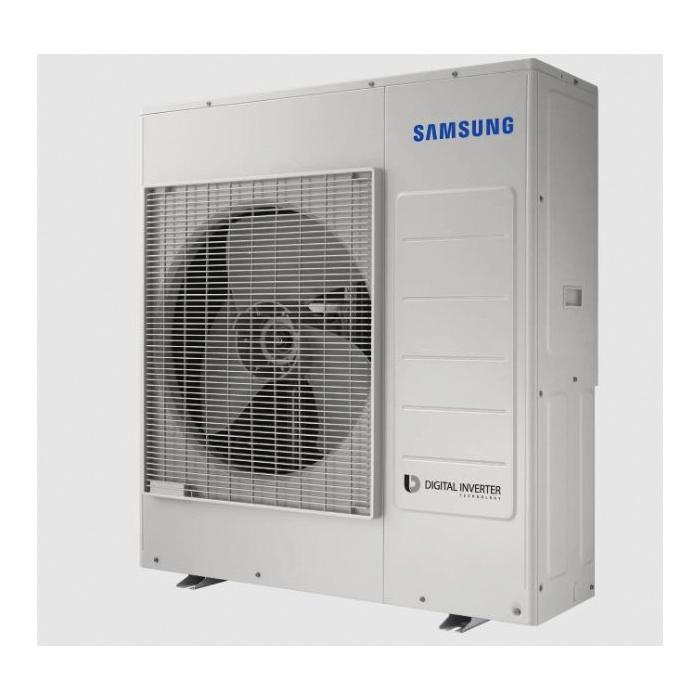

Samsung Max Heat® Heat Pump Condensing Unit, FJM Series, 208-230 V, 8.8/9.2 A, 60 Hz, 1 ph Phase, 25000 Btu/hr Heating, 25000 Btu/hr Cooling, 2493 cfm Cooling CFM Rating, 10.6, 11.8, 13 EER Rating, 17.5, 18.75, 20 SEER, 8.3, 8.65, 9 HSPF, Twin BLDC Rotary Inverter Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 30 A Fuse Rating, 58 dBA Heating Sound Level, 54 dBA Cooling Sound Level, Steel, Finish: Galvanized/Powder-Coated, -13 to 75 deg F Heating Operating Temperature, 14 to 114.8 deg F Cooling Operating Temperature, 37 in Overall Width, 39-5/16 in Overall Height, For Use With: Model AR**TSFABWKNCV, AR**TSFYBWKNCV, AC0**BNNDCH/AA, AC0**BN1DCH/AA, AJ0**BNHDCH/AA Indoor Units, Additional Information: 13 in D
- The Samsung Max Heat® system shall provide high heating capacity at -13 deg F outside temperature
- The outdoor unit shall supply power individually to the indoor units via 14/3 AWG power wire
- The outdoor unit shall have a base pan heater as standard to ensure optimal defrost cycle water drainage
- Auto restart after power loss
- System energy consumption can be viewed using Samsung SmartThings mobile app (not revenue-grade, for reference only)
- Available maximum current setting option to reduce operating current
- Soft start to reduce current demand during compressor start
- Auto or manual addressing of indoor units
