| Additional Information | : | 17000 Btu/hr BTU Rating, 1448 cfm Rating, Vent, Ducted/Ductless, 48 dBA Sound Level, 80 deg F Temperature Rating |
| Amperage Rating | : | 2.2/6.7 A |
| Compressor Type | : | Rotary |
| EER Rating | : | 11.1, 12.2 |
| Finish | : | Baked-On Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 8.7, 9 |
| Material | : | Steel |
| Overall Height | : | 31-7/16 in |
| Overall Length | : | 14-5/16 in |
| Overall Width | : | 34-5/8 in |
| Phase | : | 1 ph |
| Power Rating | : | 165 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 17, 18.5 |
| Series | : | FJM Series |
| Voltage Rating | : | 208-230 V |

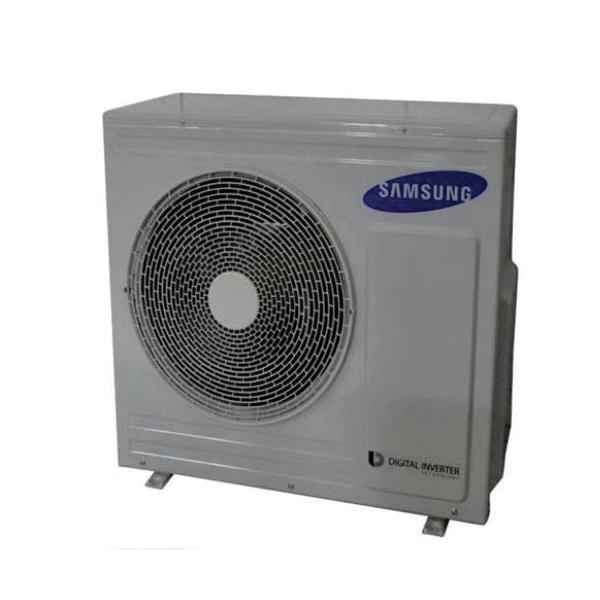

Samsung Mini-Split Heat Pump, FJM Series, 208-230 V, 2.2/6.7 A, 165 W, 60 Hz, 1 ph Phase, 11.1, 12.2 EER Rating, 17, 18.5 SEER, 8.7, 9 HSPF, Rotary Compressor, R-410A Refrigerant, 15 A Fuse Rating, Steel, Finish: Baked-On Powder-Coated, 14-5/16 in Overall Length, 34-5/8 in Overall Width, 31-7/16 in Overall Height, Additional Information: 17000 Btu/hr BTU Rating, 1448 cfm Rating, Vent, Ducted/Ductless, 48 dBA Sound Level, 80 deg F Temperature Rating
- Low ambient control
- The outdoor unit shall supply power to indoor unit via 14 AWG x 3 power wire
- Soft start to reduce current demand during compressor start
- Auto restart after power loss
- The outdoor unit shall be galvanized steel with a baked-on powder-coated finish for durability
- Aluminum fin/copper tube heat exchanger shall be mechanically bonded fin to copper tube
- Control signal shall be a DDC-type signal
- Interconnect control wire between outdoor and indoor units shall be 16 AWG x two-shielded
- Controls shall integrate with a BMS system
- The system shall integrate with the Samsung controls solution
- The compressor shall be hermetically sealed, inverter controlled, twin BLDC rotary
- Refrigerant flow shall be controlled by two-separate electronic expansion valves at outdoor unit
