| Additional Information | : | 3-Port, 13 in D |
| Amperage Rating | : | 36.5 A |
| Compressor Type | : | Twin BLDC Rotary Inverter |
| Cooling BTU Rating | : | 28000 Btu/hr |
| Cooling CFM Rating | : | 3320 cfm |
| Cooling Operating Temperature | : | 14 to 114.8 deg F |
| Cooling Sound Level | : | 52 dBA |
| EER Rating | : | 15 |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 10.5 |
| Heating BTU Rating | : | 27700 Btu/hr |
| Heating CFM Rating | : | 3320 cfm |
| Heating Operating Temperature | : | -13 to 75 deg F |
| Heating Sound Level | : | 55 dBA |
| Liquid Line Size | : | 1/4 in |
| Material | : | Steel |
| Mounting Type | : | Floor, Wall |
| Number of Fan Speeds | : | 2 |
| Overall Height | : | 47-5/8 in |
| Overall Width | : | 37 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 23 |
| Series | : | FJM Series |
| Suction Line Size | : | 3/8 in, 1/2 in |
| Voltage Rating | : | 208-230 V |

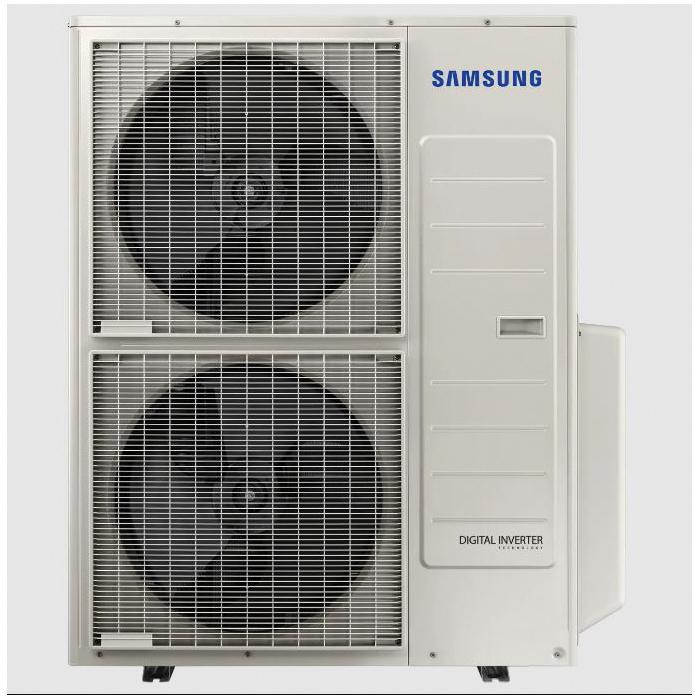

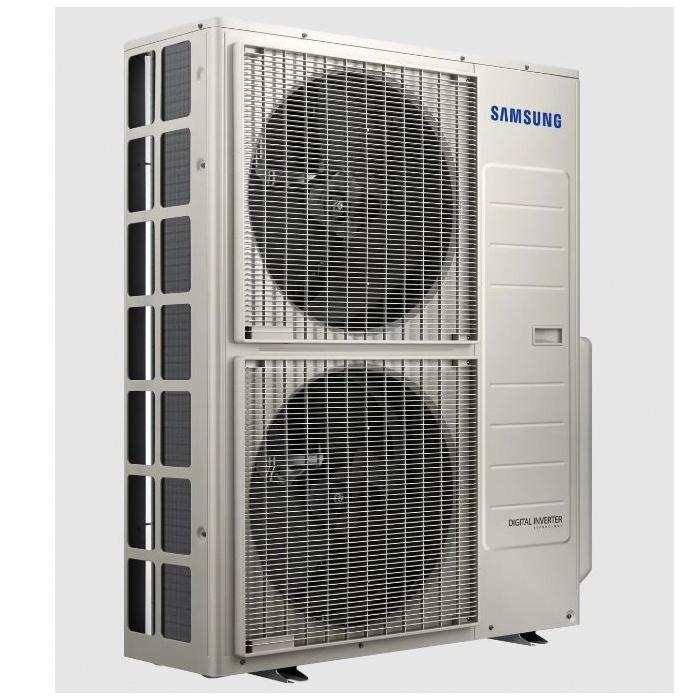

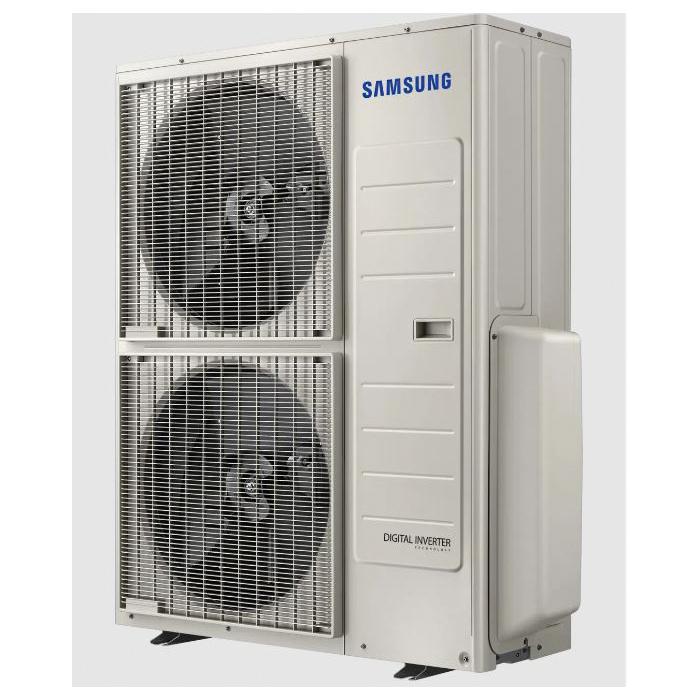

Samsung Max Heat® Heat Pump Condensing Unit, FJM Series, 208-230 V, 36.5 A, 60 Hz Frequency, 1 ph, Number of Fan Speeds: 2, Heating BTU Rating: 27700 Btu/hr, Cooling BTU Rating: 28000 Btu/hr, Heating CFM Rating: 3320 cfm, Cooling CFM Rating: 3320 cfm, 15 EER, 23 SEER, 10.5 HSPF, Twin BLDC Rotary Inverter Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 3/8 in, 1/2 in Suction Line, Heating Sound Level: 55 dBA, Cooling Sound Level: 52 dBA, Floor, Wall Mounting, Steel, Baked-On Powder-Coated/Galvanized, Heating Operating Temperature: -13 to 75 deg F, Cooling Operating Temperature: 14 to 114.8 deg F, 37 in Overall Width, 47-5/8 in Overall Height, Additional Information: 3-Port, 13 in D
- The Samsung Max Heat® system shall provide high heating capacity at -13 deg F (-25 deg C) outside temperature
- The outdoor unit shall supply power to indoor unit via 14 AWG x 3 power wire
- The outdoor unit shall have a base pan heater as standard to ensure optimal defrost cycle water drainage
- Auto restart after power loss
- System energy consumption can be viewed using Samsung SmartThings mobile app (not revenue-grade, for reference only)
- Soft-start to reduce current demand during compressor start
- Auto or manual addressing of indoor units
