| Additional Information | : | 7-13/16 in D Dimensions |
| Amperage Rating | : | 0.35 A |
| BTU Rating | : | 15000 Btu/hr |
| CFM Rating | : | 254 cfm, 290 cfm, 318 cfm |
| Frequency Rating | : | 60 Hz |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 24-7/16 in |
| Overall Width | : | 28-3/8 in |
| Phase | : | 1 ph |
| Power Rating | : | 35 W |
| Refrigerant Type | : | R-410A |
| Series | : | FJM Series |
| Sound Level | : | 36 dBA, 39 dBA, 42 dBA |
| Suitable For Use With | : | Model AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units |
| Voltage Rating | : | 208 to 230 V |

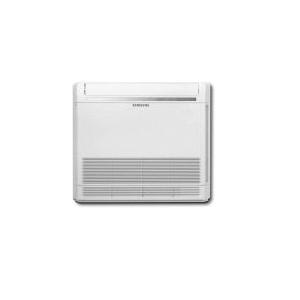

Samsung Console Air Conditioner, Series: FJM Series, 208 to 230 V, 0.35 A, 35 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 15000 Btu/hr, 254 cfm, 290 cfm, 318 cfm Rating, R-410A, 36 dBA, 39 dBA, 42 dBA, 28-3/8 in Overall Width, 24-7/16 in Overall Height, For Use With: Model AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units, Additional Information: 7-13/16 in D Dimensions
- High voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- The unit shall discharge cool air from the upper outlet louver (motorized) while in cooling mode and warm air from the upper and lower (manual adjustment only) outlets while in heating mode
- System energy consumption can be viewed using Samsung SmartThings mobile app (not revenue-grade, for reference only)
- The indoor unit shall be powered by the outdoor unit
- Electro-static, washable, pleated filter as standard (included)
- Gravity drain as standard
- The front panel shall have LED indicator lights, touch controls, IR receiver and one-motorized louver
- Construction - insulated, HIPS chassis certified to UL94 V0
- The heat exchanger shall be mechanically bonded fin to copper tube
- Indoor fan is turbo-type with a single fan motor
- Three-fan speed settings and auto setting
- Control signal shall be a DDC-type signal
- Interconnect control wire between outdoor and indoor unit shall be two 16 AWG
- Dual set temperature support when connected to MWR-WG00UN advanced wired controller
- The system shall integrate with the Samsung Controls Solution
