| Additional Information | : | BLDC Motor, 0.08 in-WC Pressure Rating, 1/4 in Flared Liquid Line, 3/8 in Flared Suction Line |
| Amperage Rating | : | 0.35 A |
| BTU Rating | : | 9000 Btu/hr Cooling, 10000 Btu/hr Heating |
| CFM Rating | : | 295 to 345 cfm |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Model | : | AJ009JNLDCH/AA |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 7-13/16 in |
| Overall Length | : | 23-5/8 in |
| Overall Width | : | 35-7/16 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | FJM Series |
| Sound Level | : | 25/30 dB |
| Voltage Rating | : | 208 - 230 V |

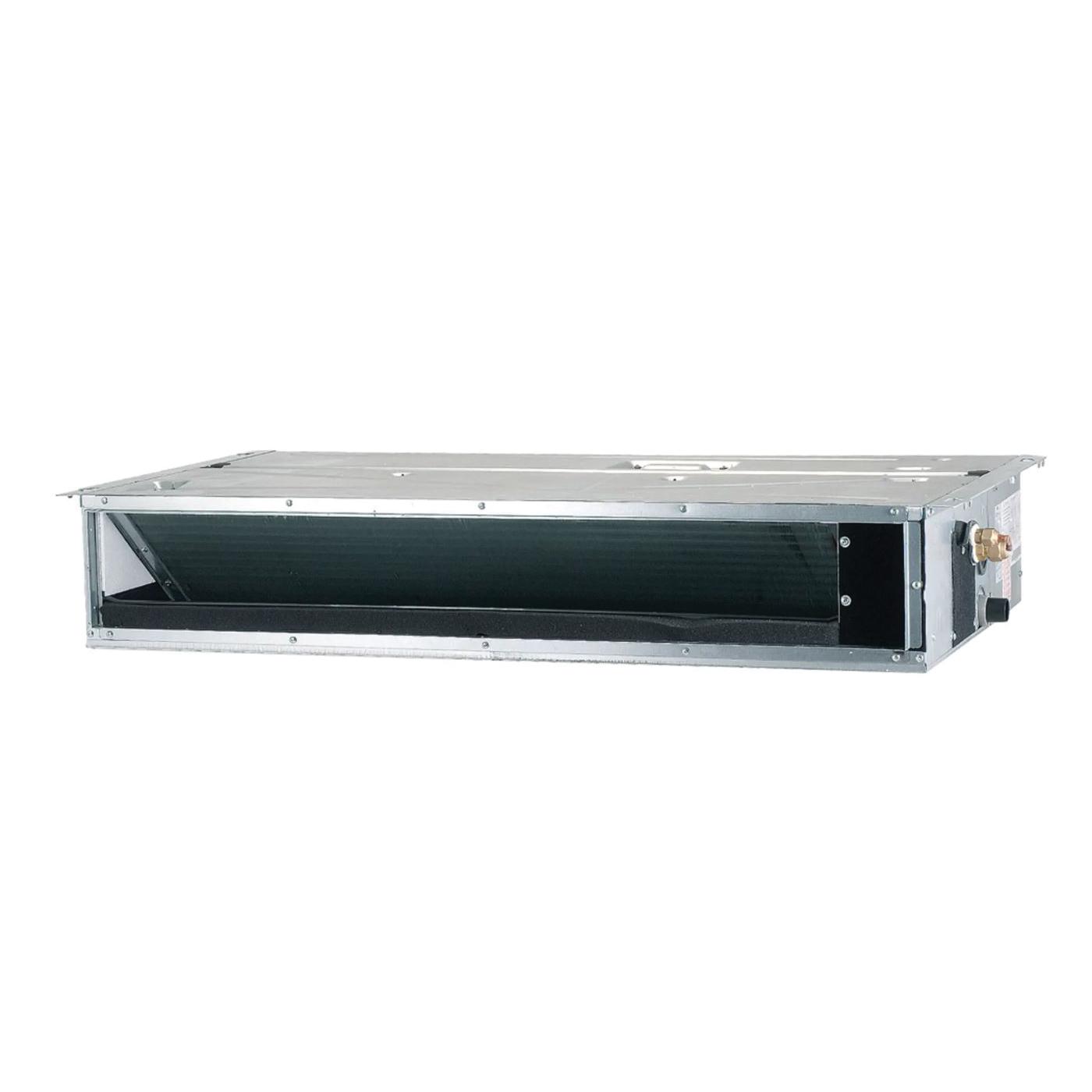

Samsung Slim Duct Single-Zone Air Handler, Series: FJM Series, Model: AJ009JNLDCH/AA, 208 - 230 V, 0.35 A, 60 Hz, 1 ph Phase, 3 Fan Speeds, 9000 Btu/hr Cooling, 10000 Btu/hr Heating, 295 to 345 cfm, R-410A Refrigerant, 25/30 dB Sound Level, Steel, Finish: Galvanized, 23-5/8 in Overall Length, 35-7/16 in Overall Width, 7-13/16 in Overall Height, Additional Information: BLDC Motor, 0.08 in-WC Pressure Rating, 1/4 in Flared Liquid Line, 3/8 in Flared Suction Line
- High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection
- Gravity drain as standard
- The indoor unit shall be powerd by the outdoor unit
- The unit shall be constructed of insulated, galvanized steel
- The heat exchanger shall be mechanically bonded fin to copper tube
- Indoor fan is a twin, backward curved centrifugal type with a single fan motor
- Three fan speed settings and auto setting
- Control signal shall be a DDC type signal
- Interconnect control wire between outdoor and indoor shall be 16AWG X 2 shielded
- Controls shall integrate with a BMS system
- The system shall integrate with the Samsung Controls Solution
- The unit includes a simple filter as standard
- Pressure drop across the filter must be factored into the total ESP
