| Additional Information | : | 13 in D |
| Amperage Rating | : | 4.7/13.2/17.7/4.2/15/23.3 A |
| Compressor Type | : | Twin BLDC Rotary |
| Cooling BTU Rating | : | 14500 to 42000 Btu/hr |
| Cooling CFM Rating | : | 1165 cfm |
| Cooling Operating Temperature | : | 23 to 122 deg F |
| Cooling Sound Level | : | 49 dB |
| Drive Type | : | Inverter |
| EER Rating | : | 12.2 |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HSPF Rating | : | 10 |
| Heating BTU Rating | : | 11000 to 48000 Btu/hr |
| Heating CFM Rating | : | 1165 cfm |
| Heating Operating Temperature | : | -13 to 75 deg F |
| Heating Sound Level | : | 51 dB |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 55-7/8 in |
| Overall Width | : | 37 in |
| Phase | : | 1 ph |
| Power Rating | : | 244 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 193 |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208 to 230 V |

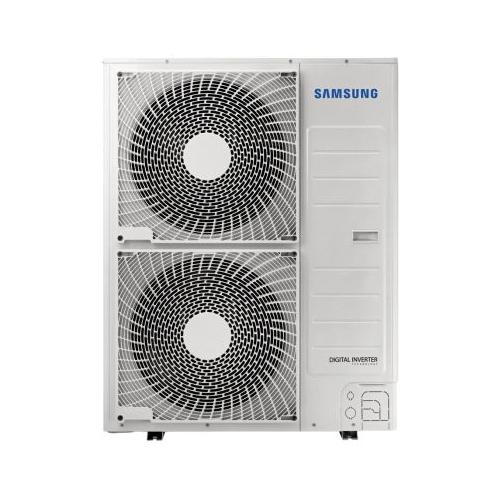

Samsung Max Heat® Outdoor Single Zone Duct Split System, 208 to 230 V, 4.7/13.2/17.7/4.2/15/23.3 A, 244 W Power, 60 Hz Frequency, 1 ph, Number of Fan Speeds: 3, Heating BTU Rating: 11000 to 48000 Btu/hr, Cooling BTU Rating: 14500 to 42000 Btu/hr, Heating CFM Rating: 1165 cfm, Cooling CFM Rating: 1165 cfm, 12.2 EER, 193 SEER, 10 HSPF, Twin BLDC Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 40 A Fuse, Inverter Drive, Heating Sound Level: 51 dB, Cooling Sound Level: 49 dB, Steel, Baked-On Powder-Coated/Galvanized, Heating Operating Temperature: -13 to 75 deg F, Cooling Operating Temperature: 23 to 122 deg F, 37 in Overall Width, 55-7/8 in Overall Height, Additional Information: 13 in D
- The system shall provide 100% heating capacity at -4 deg F(-20 deg C) and high heating performance at -13 deg F (-25 deg C)
- Base pan heater equipped as standard
- The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire
- High voltage terminal block temperature sensor to disable unit in the event of power connection overheating
- Integral condensate pump with maximum 29 in lift from bottom of the unit with check valve and float switch that disables indoor should condensate overflow be detected
- Auto restart after power loss
- Soft start compressor minimizing current inrush
- All heat exchangers shall be mechanically bonded aluminum fin to copper tube
- The condensing unit heat exchanger salt spray test method ISO 9227
- The heat exchanger showed no unusual rust or corrosion development to 3000 hr

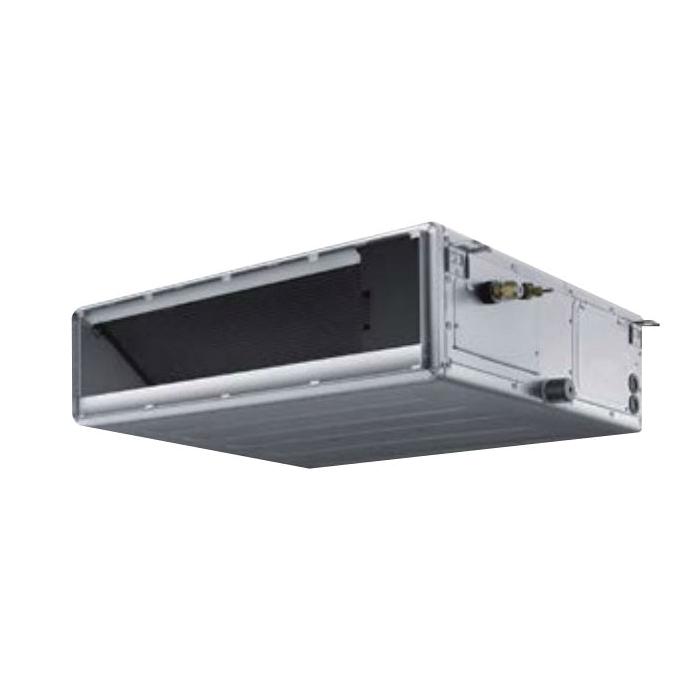

- Indoor fan is sirocco-type
- Three-fan speed settings and auto setting
- Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power
- The indoor unit shall have a smart tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve with a wired remote controller (MWR-WG00UN) to increase or decrease airflow
- The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant
- Control wiring shall be two 16 AWG
- No additional interface modules/adapters are required when connecting to Samsung central control options
- The unit shall be operated via a wireless or wired remote control with DDC-type signal
- Dual set temperature support when connected to MWR-WG00UN advanced wired controller and supported central control
- Wired or wireless controllers must be purchased separately
