| Amperage Rating | : | 17.1/24 A |
| Compressor Type | : | Twin BLDC Inverter Driven Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 30000 Btu/hr |
| Cooling CFM Rating | : | 777 cfm |
| Cooling Operating Temperature | : | 23 to 122 deg F |
| Cooling Sound Level | : | 50 dBA |
| EER Rating | : | 9.9 |
| Finish | : | Baked-On Powder-Coated/Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| HSPF Rating | : | 9.7 |
| Heating BTU Rating | : | 32000 Btu/hr |
| Heating CFM Rating | : | 777 cfm |
| Heating Operating Temperature | : | -4 to 75 deg F |
| Heating Sound Level | : | 52 dBA |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Number of Fan Speeds | : | 3 + Auto |
| Overall Height | : | 39-5/16 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37 in |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 19.5 |
| Voltage Rating | : | 208/230 V |

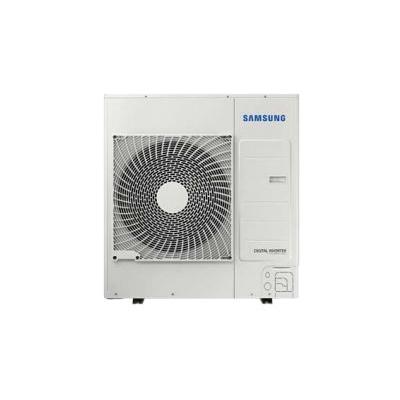

Samsung Split System Outdoor Heat Pump, 208/230 V, 17.1/24 A, 60 Hz Frequency, 1 ph, Number of Fan Speeds: 3 + Auto, Heating BTU Rating: 32000 Btu/hr, Cooling BTU Rating: 30000 Btu/hr, Heating CFM Rating: 777 cfm, Cooling CFM Rating: 777 cfm, 9.9 EER, 19.5 SEER, 9.7 HSPF, Flared Connection, Twin BLDC Inverter Driven Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 30 A Fuse, Heating Sound Level: 52 dBA, Cooling Sound Level: 50 dBA, Steel, Baked-On Powder-Coated/Galvanized, Heating Operating Temperature: -4 to 75 deg F, Cooling Operating Temperature: 23 to 122 deg F, 13 in Overall Length, 37 in Overall Width, 39-5/16 in Overall Height
- The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire
- High voltage terminal block temperature sensor to disable unit in the event of power connection overheating
- Auto restart after power loss
- Soft start compressor minimizing current inrush
- All heat exchangers shall be mechanically bonded aluminum fin to copper tube
