| Additional Information | : | Single Zone |
| Amperage Rating | : | 24.1 A |
| BTU Rating | : | 24000 Btu/hr Cooling, 27000 Btu/hr Heating |
| CFM Rating | : | 2684 cfm Condenser, 749 cfm Evaporator |
| Compressor Type | : | Twin BLDC Rotary |
| Drive Type | : | Inverter |
| EER Rating | : | 12 |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 8.4 |
| Material | : | Steel |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 9-13/16 in |
| Overall Length | : | 27-9/16 in |
| Overall Width | : | 47-1/4 in |
| Phase | : | 1 ph |
| Power Rating | : | 125 W, 153 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 19.5 |
| Sound Level | : | 36 dBA |
| Temperature Rating | : | 64 to 90 deg F Cooling, <=86 deg F Heating |
| Voltage Rating | : | 208 to 230 V |
CAC duct S units connect to universal residential/light commercial outdoor unit models AC0xxBXADCH/AA. This system uses advanced technologies to minimize waste and improve efficiency. By adopting the smart inverter technology, the CAC systems not only offer silent operation but also outstanding cooling and heating performance. Samsung single zone duct units offer a wide external static range and includes an internal condensate pump as standard. The evaporator shall be concealed duct type.

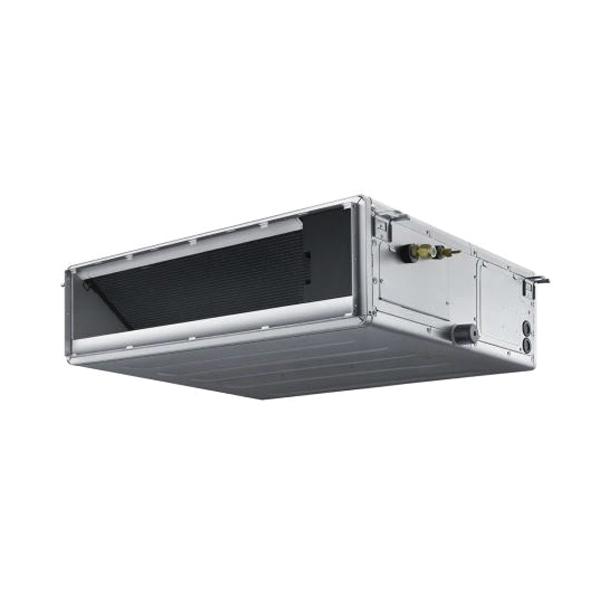

Samsung High Static Pressure Duct S Indoor Unit, 208 to 230 V, 24.1 A, 125 W, 153 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 24000 Btu/hr Cooling, 27000 Btu/hr Heating, 2684 cfm Condenser, 749 cfm Evaporator CFM Rating, 12 EER, 19.5 SEER, HSPF: 8.4, Twin BLDC Rotary Compressor, R-410A, Inverter Drive, 36 dBA, Steel, Galvanized, 64 to 90 deg F Cooling, <=86 deg F Heating, 27-9/16 in Overall Length, 47-1/4 in Overall Width, 9-13/16 in Overall Height, Additional Information: Single Zone
- The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire
- High voltage terminal block temperature sensor to disable unit in the event of power connection overheating
- Integral condensate pump with maximum 29 in lift from bottom of the unit with check valve and float switch that disables indoor should condensate overflow be detected
- Auto restart after power loss
- Soft start compressor minimizing current inrush
- All heat exchangers shall be mechanically bonded aluminum fin to copper tube
- The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 3000 hr
- Base pan heater equipped as standard
- System shall provide 100% heating capacity at -4 deg F (-20 deg C)
