| Additional Information | : | Single Zone |
| Amperage Rating | : | 20.1 A |
| BTU Rating | : | 18000 Btu/hr Cooling, 20000 Btu/hr Heating |
| CFM Rating | : | 2154 cfm Condenser, 600 cfm Evaporator |
| Compressor Type | : | Twin BLDC Rotary |
| Drive Type | : | Inverter |
| EER Rating | : | 12.1 |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 7.5 |
| Material | : | Steel |
| Number of Fan Speeds | : | 3 |
| Overall Height | : | 7-13/16 in |
| Overall Length | : | 17-5/16 in |
| Overall Width | : | 43-5/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 125 W, 84 W |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 20 |
| Sound Level | : | 35 dBA |
| Temperature Rating | : | 64 to 90 deg F Cooling, <=86 deg F Heating |
| Voltage Rating | : | 208 to 230 V |

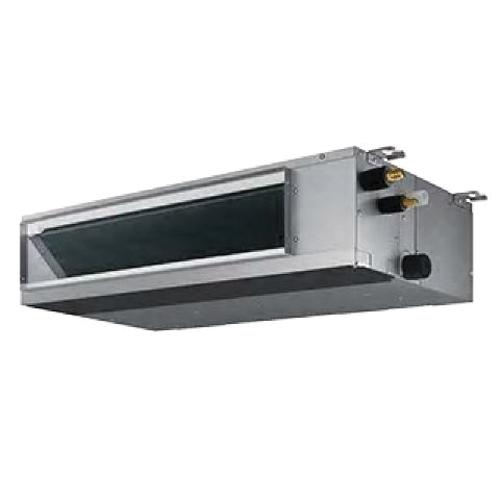

At only 7-7/8 in thick, the slim duct makes installation, maintenance and repair hassle-free. Its lightweight chassis also makes installation easier than ever. The slim duct unit includes a built-in condensate pump as standard.
Samsung Slim Duct Indoor Unit, 208 to 230 V, 20.1 A, 125 W, 84 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 18000 Btu/hr Cooling, 20000 Btu/hr Heating, 2154 cfm Condenser, 600 cfm Evaporator CFM Rating, 12.1 EER, 20 SEER, HSPF: 7.5, Twin BLDC Rotary Compressor, R-410A, Inverter Drive, 35 dBA, Steel, Galvanized, 64 to 90 deg F Cooling, <=86 deg F Heating, 17-5/16 in Overall Length, 43-5/16 in Overall Width, 7-13/16 in Overall Height, Additional Information: Single Zone
- The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire
- High voltage terminal block temperature sensor to disable unit in the event of power connection overheating
- Integral condensate pump with maximum 29 in lift from bottom of the unit with check valve and float switch that disables indoor should condensate overflow be detected
- Auto restart after power loss
- Soft start compressor minimizing current inrush
- All heat exchangers shall be mechanically bonded aluminum fin to copper tube
- The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 3000 hr
- Base pan heater equipped as standard
