| Amperage Rating | : | 17 A |
| Capillary Length | : | 36 in |
| Connection Type | : | 1/4 in SAE Flared Nut |
| Enclosure Type | : | NEMA 1 |
| Pressure Rating | : | 50 to150 lb/sq-in, 10 to 40 psid |
| Switch Type | : | SPDT |
| Voltage Rating | : | 120/240 VAC |

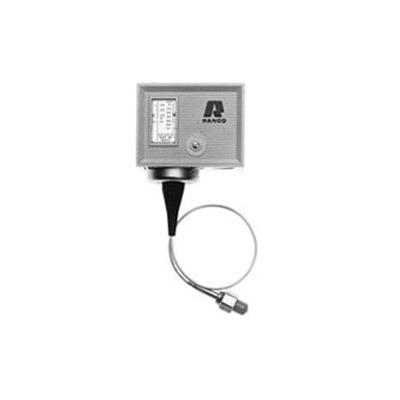

Robertshaw® Pressure Control Switch, 17 A, 120/240 VAC, 1/4 in SAE Flared Nut Connection, 50 to150 lb/sq-in, 10 to 40 psid, SPDT Switch, 36 in Capillary Length, NEMA 1 Enclosure
- Controls available for most refrigerant types
- High-amp rated switch (SPST) design (O10-1402/O10-1483)
- Super cap capillary vibration protection system
- Non-conductive front cover with captive screw
- Adjustable differential and range
- Easy-to-read scale plate
- Vibration cone (absorbs and reduces vibration away from brazed joint)
- Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
- Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
- Originally designed for use with obsolete refrigerants R12, R22, R500 and R502
