| Connection Size | : | 1/4 in |
| Connection Type | : | SAE Flared |
| Differential Pressure | : | 3 to 10 bar |
| Pressure Rating | : | 7 to 27 bar |
| Reset Type | : | Automatic |
| Series | : | O Series |
| Switch Type | : | SPST |

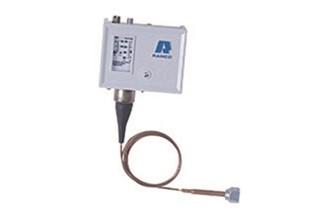

Robertshaw® Pressure Switch Low Pressure, O Series, 7 to 27 bar, 3 to 10 bar Differential Pressure, SPST Switch, 1/4 in Connection, SAE Flared Connection, Automatic Reset
- The Ranco® O Series single high pressure controls offer a variety of pressure ranges and switch action to provide maximum application flexibility
- Front located captive cover screw
- Large, easy-to-read scale plate
- Super Cap® capillary protection system
- Universal mounting and compact design
- Screw terminals are raised and fully accessible for easy wiring
- Laser welded bellows for extended life
- Heavy-duty plated steel frame
