| Connection Size | : | 1/4 in |
| Connection Type | : | SAE Flared |
| Differential Pressure | : | 0.3 to 2.4 bar |
| Pressure Rating | : | 0.4 to 3.5 bar |
| Reset Type | : | Automatic |
| Series | : | O Series |
| Switch Type | : | SPST |

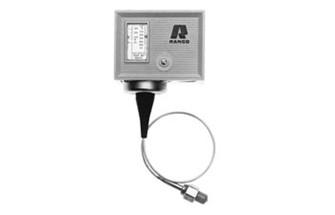

Robertshaw® Pressure Switch Low Pressure, O Series, 0.4 to 3.5 bar, 0.3 to 2.4 bar Differential Pressure, SPST Switch, 1/4 in Connection, SAE Flared Connection, Automatic Reset
- The Ranco® O Series single low pressure controls offer a variety of pressure ranges and switch action to provide maximum application flexibility
- High amp rated switch (SPST) design (O10-1402/O10-1483)
- Super Cap® capillary vibration protection system
- Non-conductive front cover with captive screw
- Adjustable differential and range
- Easy-to-read scale plate
- Vibration cone (absorbs and reduces vibration away from brazed joint)
- Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
